Service and maintenance
128 Electrical system

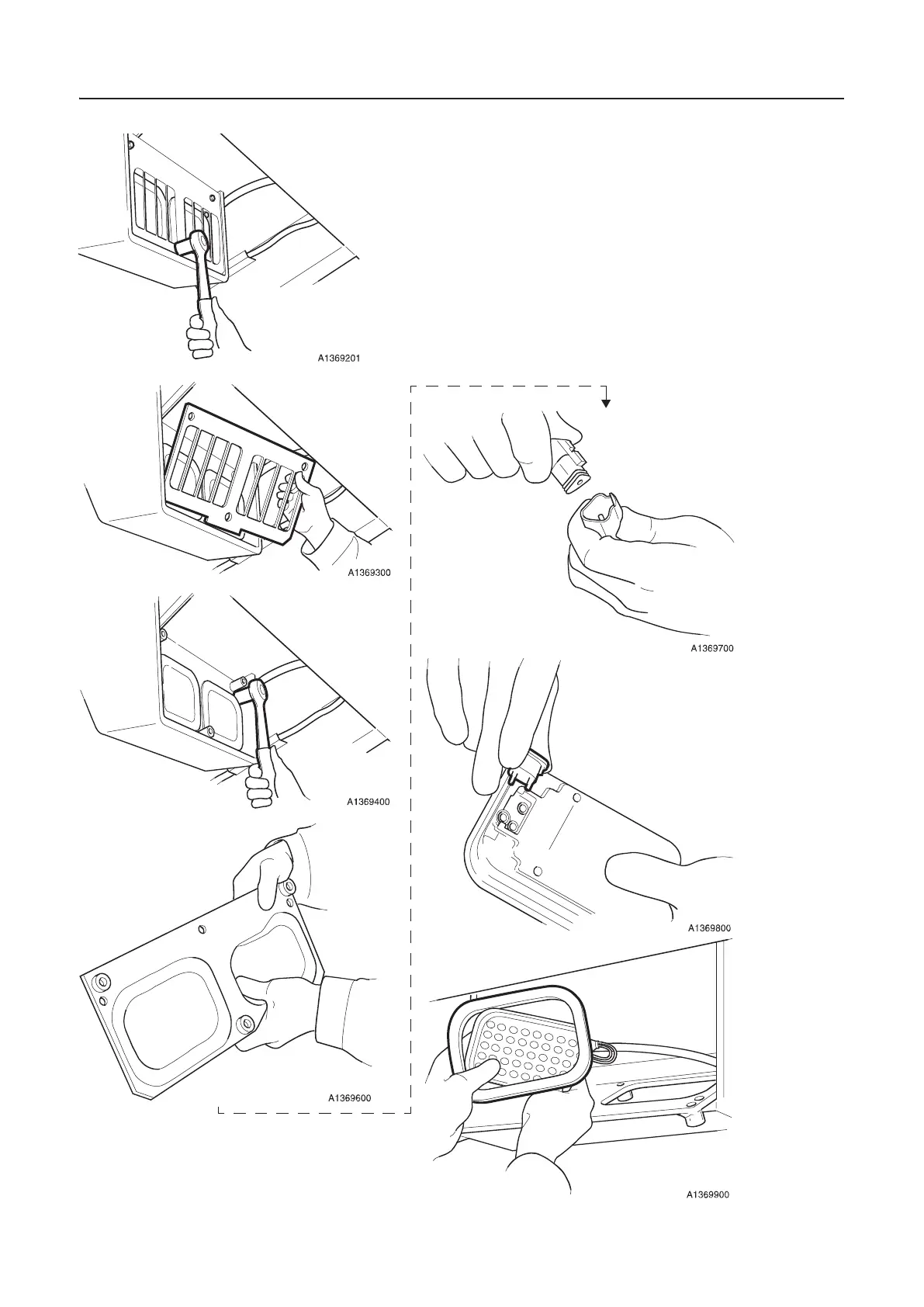

Bulb insert, replacing
1 Remove the protective grille (three bolts).
2 Remove the plate with the bulb inserts (two bolts).
3 Remove the bulb insert from the plate. Push the rubber
moulding out through the hole.
4 Split the connector for the bulb insert.
5 Remove the rubber moulding from the bulb insert.
