Instrument panels
Centre instrument panel 23

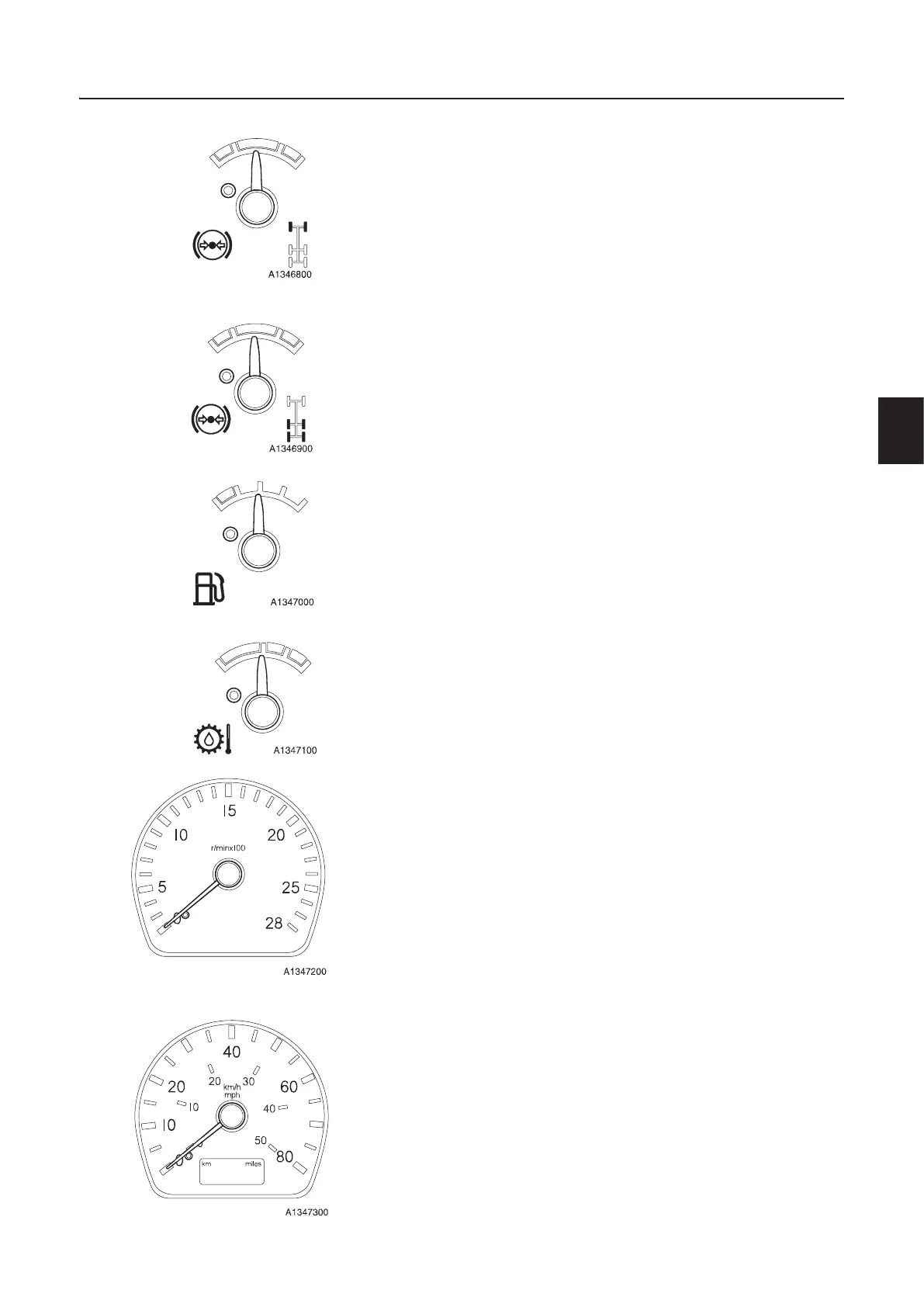

21 Brake circuit oil pressure in tractor unit
Shows the hydraulic oil pressure in the tractor unit brake circuit.
22 Brake circuit oil pressure in trailer unit
Shows the hydraulic oil pressure in the trailer unit brake circuit.
23 Fuel gauge
Shows the level in the fuel tank.
24 Transmission oil temperature
Shows the oil temperature in the transmission.
25 Tachometer
The tachometer is graduated from 0–28/min. × 100, which means
that, for example, 20 on the scale corresponds to 2000 revolutions
per minute.
26 Speedometer, odometer
The speedometer shows a speed of 0–80 km/h
(0–50 miles/h) and also has a digital odometer, graduated in km
(miles).
