Instrument panels
26 Right instrument panel
3 Ignition switch

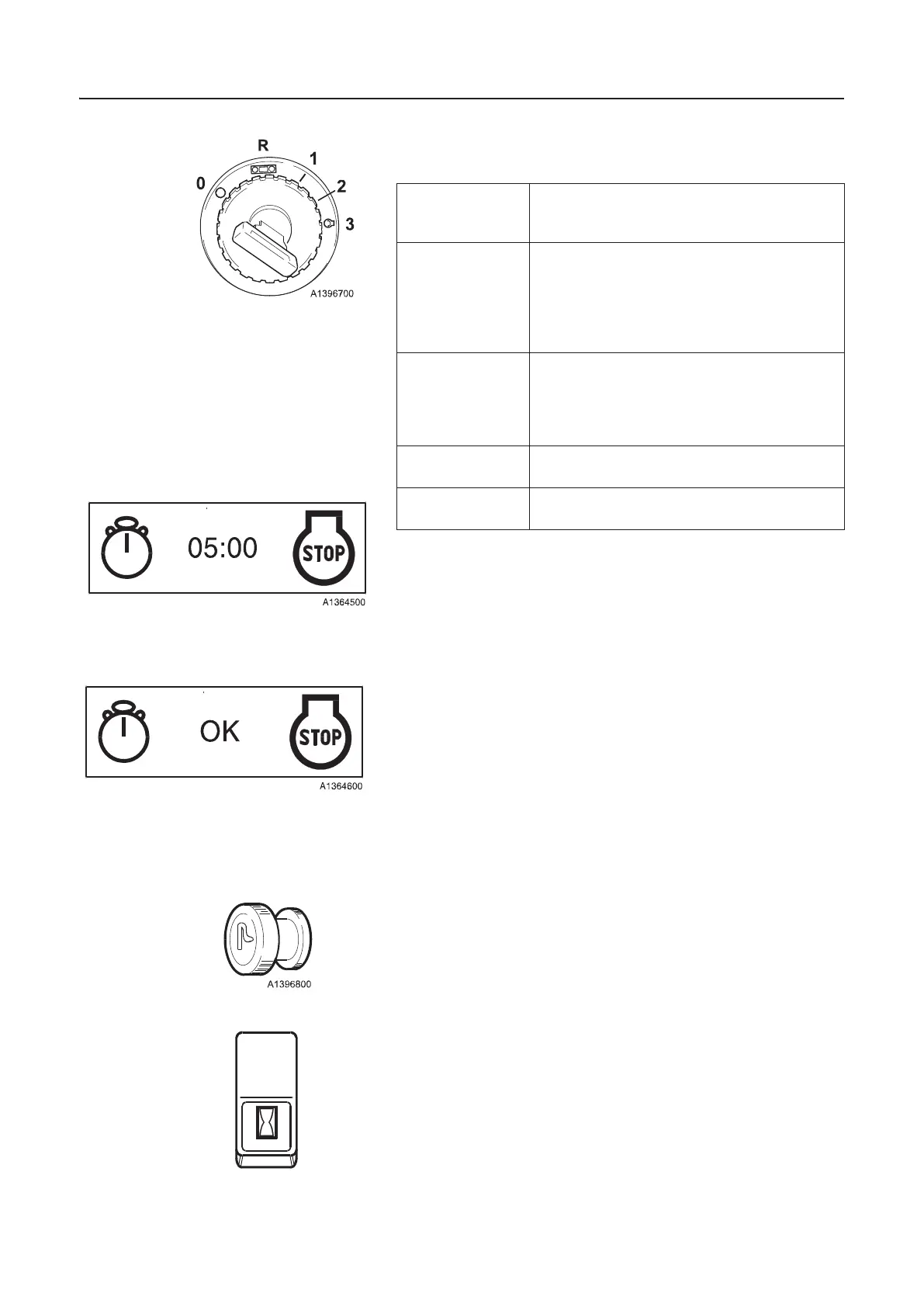

The ignition switch has five positions as shown in the figure.
Delayed stop (optional equipment)
When the ignition key is turned from position 1 to position R or 0
and the switch for "Delayed engine stop" (see point 6 below) is
switched on, the engine will run for a further three minutes. This
time may be changed with VCADS Pro or service display unit
Contronic.
The function will be activated if the following conditions are met:
– gear selector in neutral (N position)
– ignition key in position 0 (turned off)
– the switch is switched on.
If the operator changes his or her mind and wants to continue
operating, the ignition key should be turned back to position 1
before the electronics has closed down and the engine stopped.
When the function is activated it is not possible to:
– engage a gear
–
change the engine speed (the accelerator pedal is disconnected).
4 Cigarette lighter
The cigarette lighter socket may also be used as a 24 V DC (15 A)
power socket.
5 Unassigned
6 Delayed stop of engine (optional equipment)
Upper end of switch pressed in = delayed stop deactivated
Lower end of switch pressed in = delayed stop activated (lamp in
switch lights) and the function will be connected if the following
conditions are met:
– gear selector in neutral (N position)
– the ignition key in position 0 (turned off) or position R
(radio position)
– the switch is switched on.
Turned off
position (0)
The engine will stop immediately unless the
function "Delayed engine stop" has been
activated (optional equipment), see below.
Radio
position (R)
Certain electrical equipment will be supplied
with electricity.
The engine will stop if the key is turned from
running position (1), unless the function
"Delayed engine stop" has been activated
(optional equipment), see below.
Running
position (1)
The electronics starts up and goes into
running mode.
The anti-theft device (if installed) will be
connected.
The safety stop may be connected.
Preheating
position (2)
The preheating will be connected.
Starting
position (3)
The starter motor will be engaged after a
delay of a couple of seconds.
Delayed stop (count-down in progress)
Delayed stop (count-down completed)
A9002600
STOP
