Other controls
Controls 47

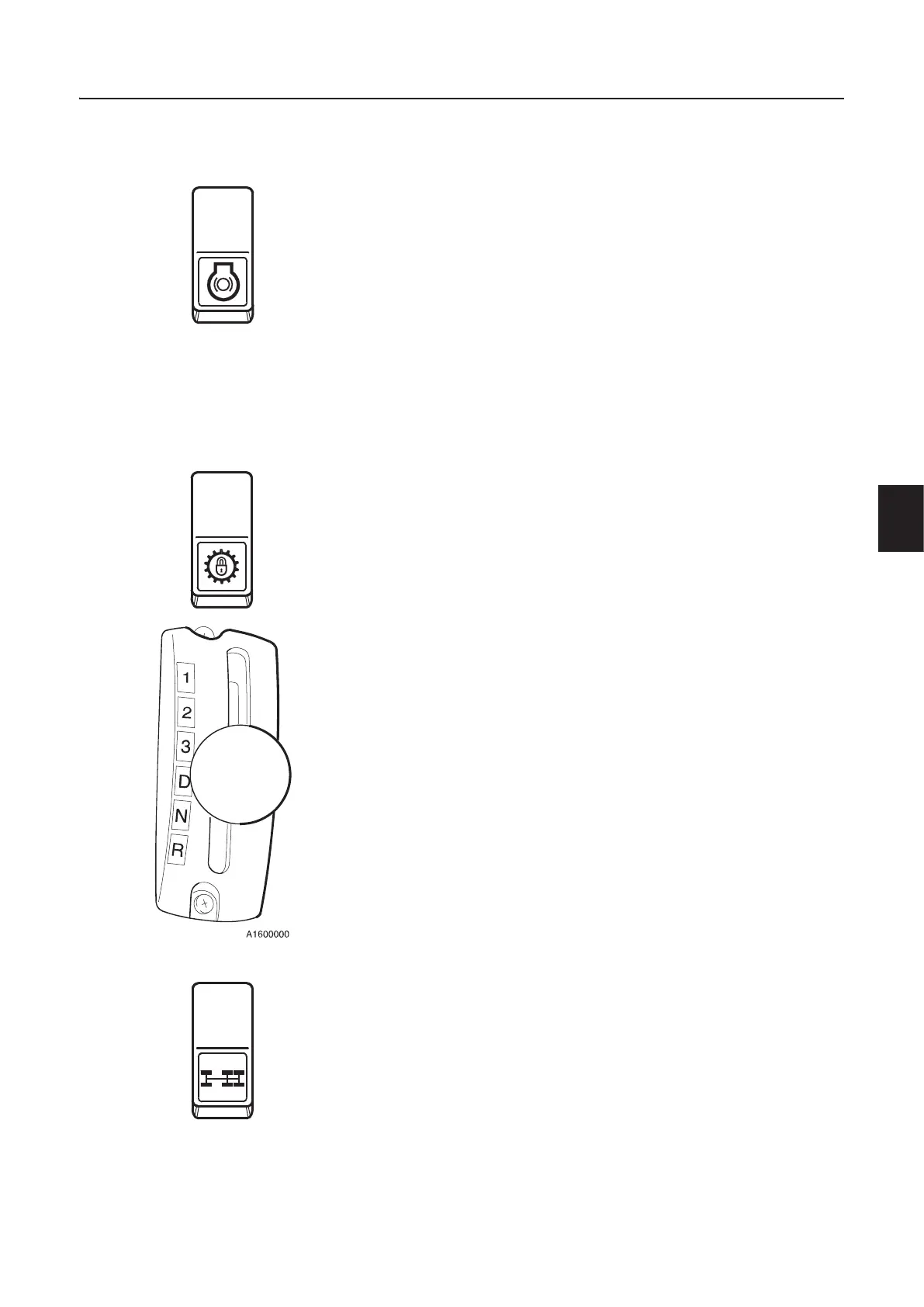

1 Unassigned
2 Exhaust brake / engine braking in
accelerator pedal
Upper end of switch pressed in = limited engine braking
deactivated
Lower end of switch pressed in = limited engine braking in
accelerator pedal activated and the function will be engaged
automatically when the accelerator pedal is released. See also
page 69.
3 Gear-shift inhibitor
Press the switch to engage the gear-shift inhibitor. The switch has
a spring return action. See also page 64.
4 Gear selector
NOTE! Never leave the machine with the gear selector in
forward or reverse, while the engine is running.
5 Longitudinal differential lock and 6-wheel drive
Upper end of switch pressed in = longitudinal differential lock
disengaged
Lower end of switch pressed in = longitudinal differential lock
engaged
NOTE! Switch missing if machine is equipped with ATC.
Gears 1–3 0% engine braking
Gear 4 35% engine braking
Gear 5 65% engine braking
Gears 6–9 100% engine braking
Gear position
Position 1 1st gear
Position 2 Automatic shifting between 1st and 2nd gear
Position 3 Automatic gear shifting between 1st, 2nd and
3rd gear
Position D Aut. shifting between 1st, 2nd, 3rd, 4th, 5th, 6th,
7th, 8th and 9th gear
Position N Neutral position
Position R Aut. shifting between 1st, 2nd and 3rd reverse
gear
