Safety when servicing
94 Preparations before service
Steering joint lock
1 Remove the pin from the transporting position lug and swing
the joint lock (A) over to the locked position.
2 Install and secure the pin.
NOTE! The steering joint must not be locked when operating
the machine.
Dump body lock
Secure the dump body as follows:
1 Tip up the dump body to max. tipping (dumping) angle.
2 Lock the dump body with the dump body lock (C) or lower the
dump body down against a dump body support.
3 Lock the tipping control in "HOLDING POSITION" with lock-out
control (B).
When work has been completed:
4 Disconnect dump body lock (C) or remove the dump body
support.
5 Disengage lock-out control (B) from the tipping control.
6 Lower the dump body.
IMPORTANT! Always lean in under the dump body from one
side when the dump body lock is to be locked or unlocked.
WARNING!
The steering joint lock must be in the locked position
during all work on the steering joint.
WARNING!
When working with a raised dump body, the dump body
must be secured with the dump body lock or the dump
body support.

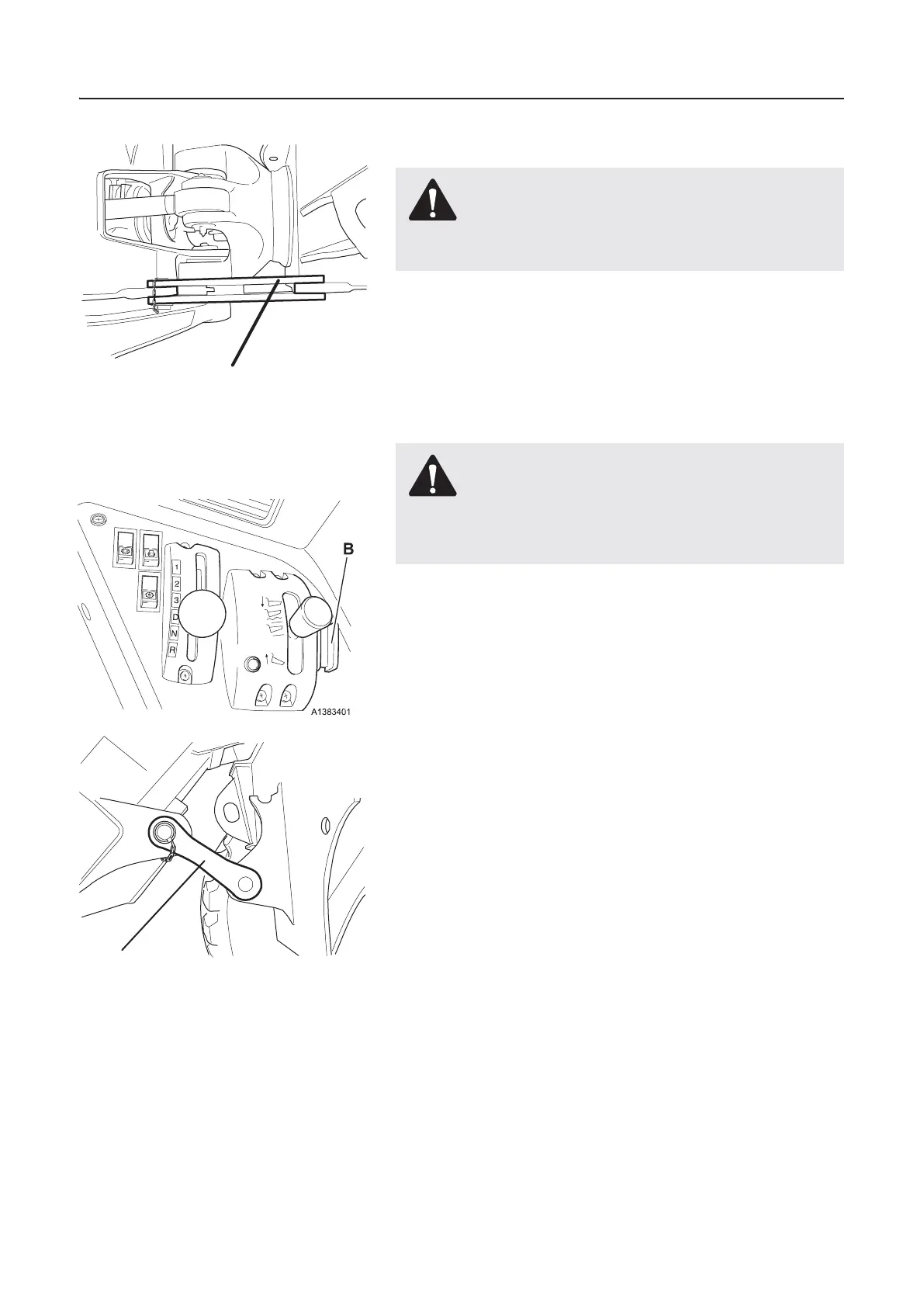

A
1031118
A Steering joint lock
1031122
C
B Lock-out control for tipping control
C Dump body lock
