General Information 23
The fuse relay panel is located under the top cover of the dash board. The
vehicle has an electrical center located in the middle of the dash under the top
cover. Since the function of some fuses or relays may change for the vehicle
application, refer to the list of functions that is attached beneath each panel.

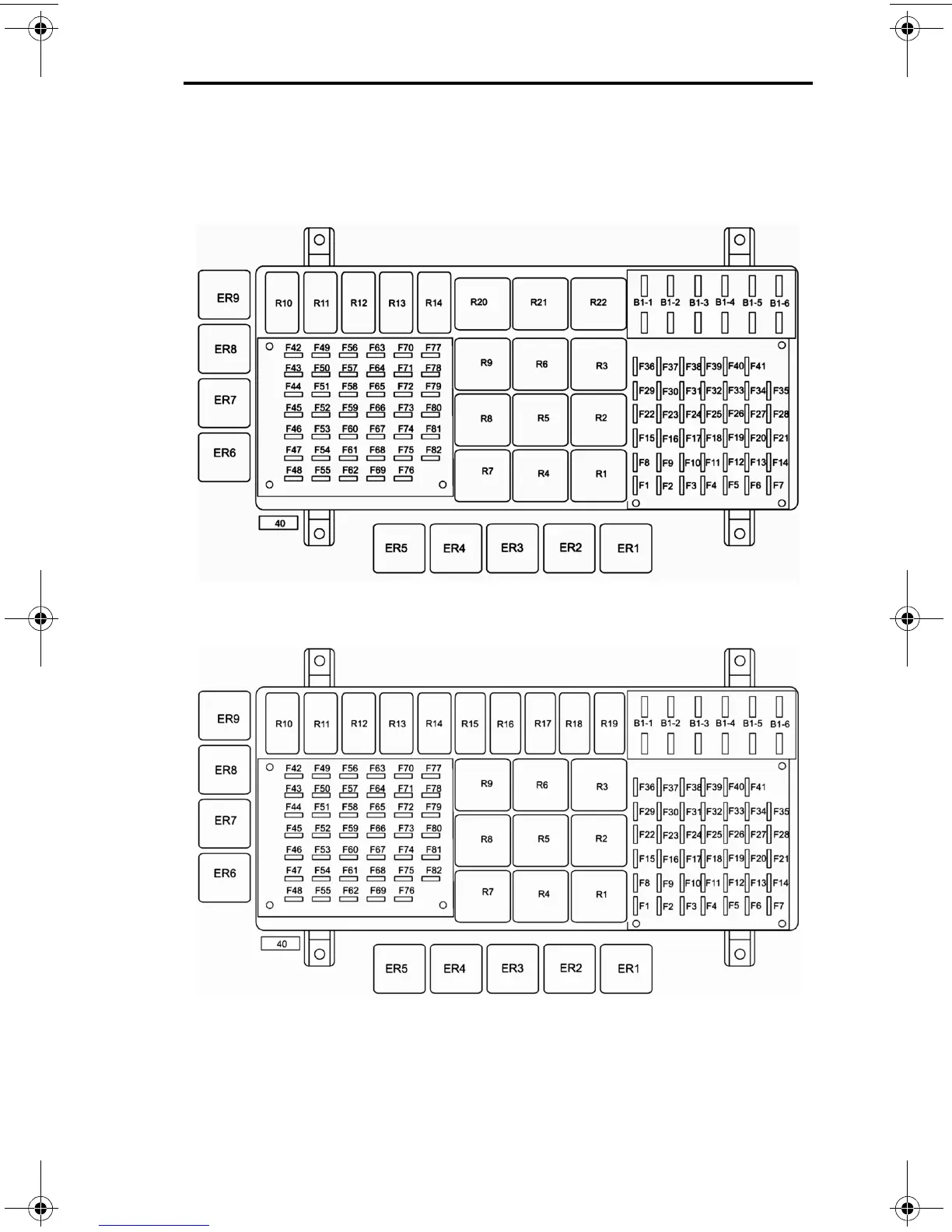

VN Fuse and Relay Center
VHD Fuse and Relay Center
