Volvo Handsfree - Page 8

12
IMG -250289

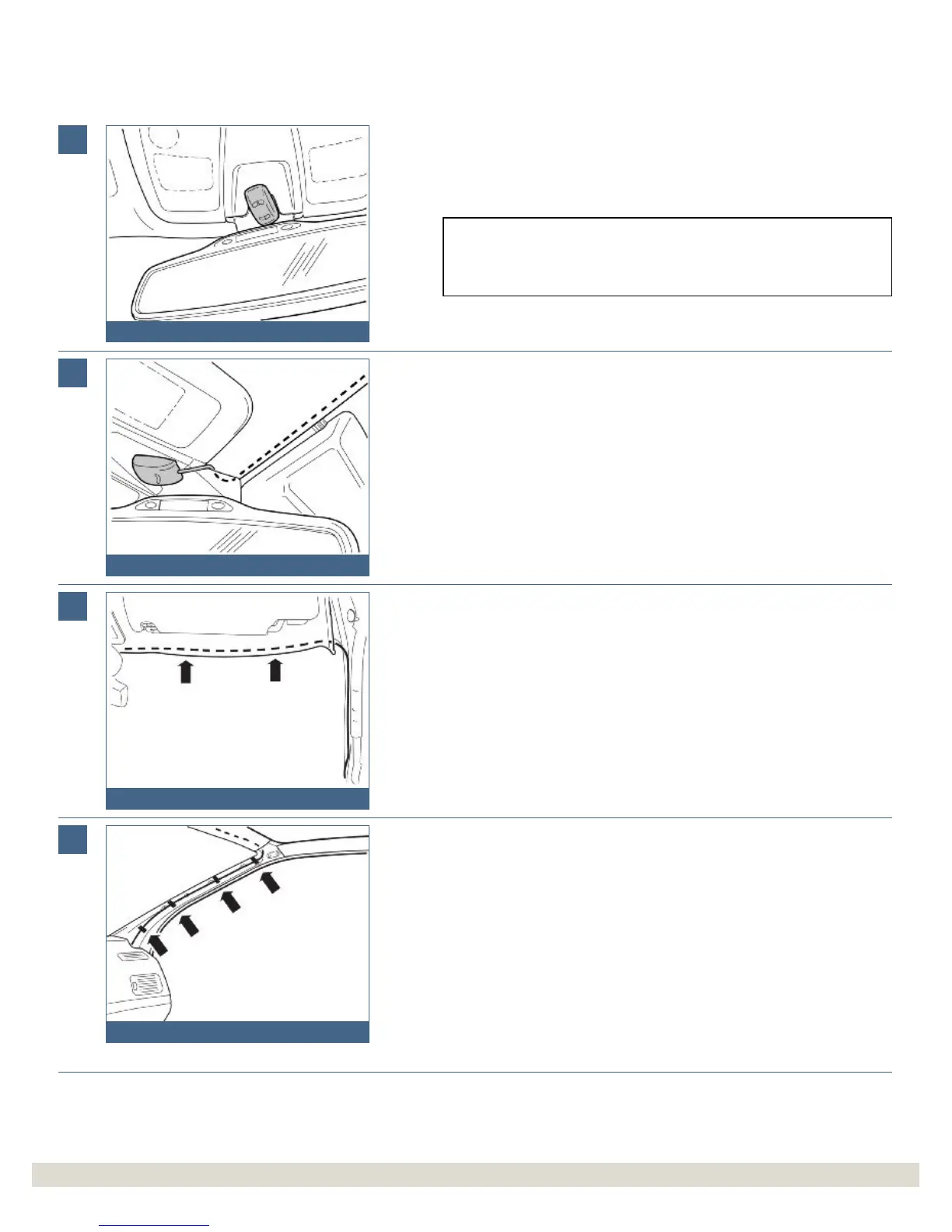

Installing the microphone
● Remove the remaining protective film from the Velcro strip. Press the microphone
securely into place.
Note!
The microphone must be pointing towards the driver. Make sure that it does not
obstruct adjustment of the rear view mirror.
13
IMG -250290
Installing the microphone
● Route the microphone cable under the rear view mirror's mounting and inside the
headlining. Insert the cable using a weatherstrip tool.
14
IMG -240989
Installing the microphone
● Carefully pull down the headlining and route the cable above it, to the A- pillar.
15
IMG -240992
Installing the microphone
● Pull the cable down along the A-pillar to the dashboard.
● Cut off two 100x50mm pieces of foam tape in the middle.
● Secure the cable to the A- pillar using foam tape.
Caution!
The inflatable curtain (IC) is located inside the A- pillar panel, it is important that
the cable is not positioned on it.
Installation instructions, accessories - Handsfree, Volvo Handsfree System
with Bluetooth
Installation instructions, accessories - Handsfree, Volvo Handsfree System
with Bluetooth
© VolvoCar Corporation, 2007 Printed in Sweden
31210028
© VolvoCar Corporation, 2007 Printed in Sweden
31210028
Page 8 of 17
