2006 Volvo S40

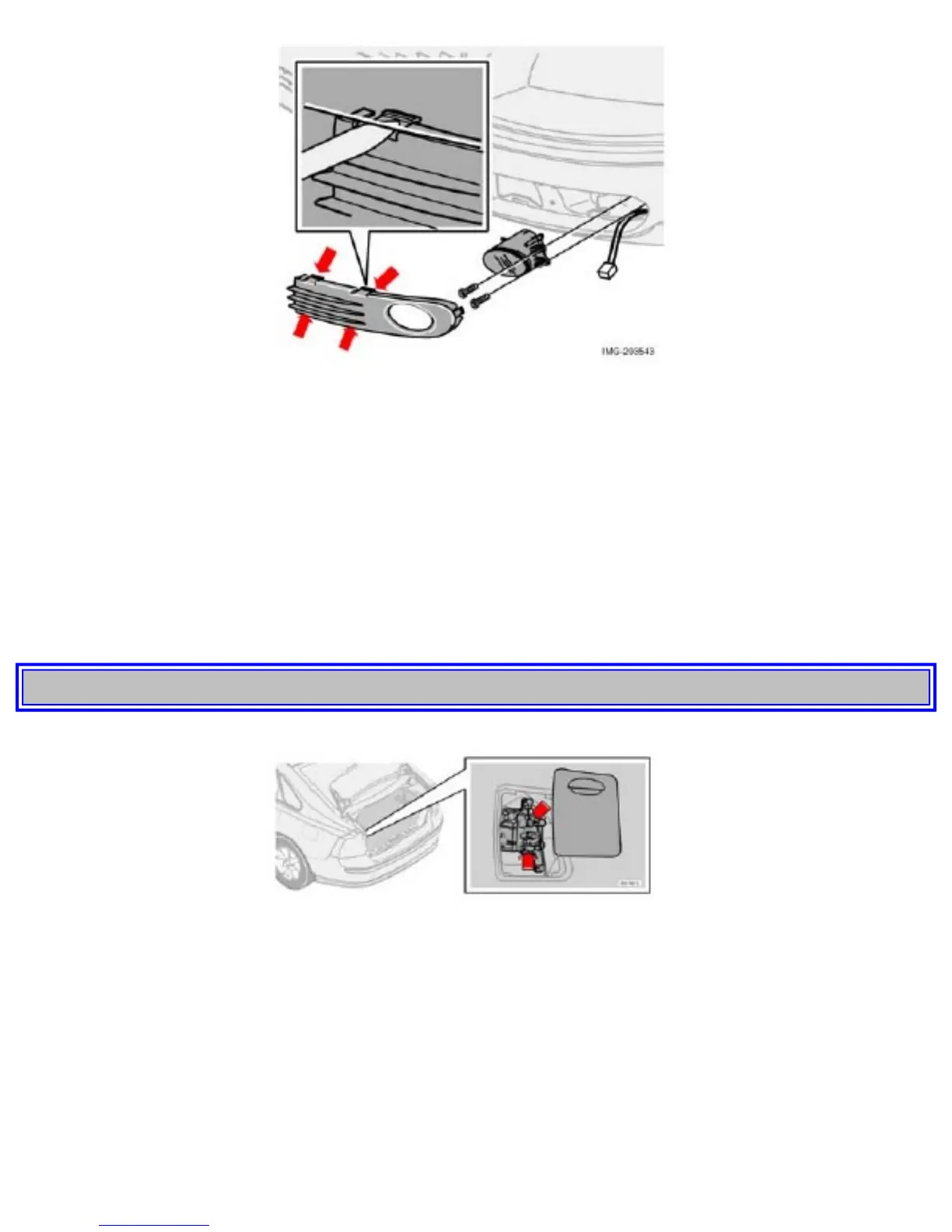

Front fog light (option)
1. Switch off all lights and turn the key to position 0.
2. Remove the panel around the fog light housing.
3. Unscrew both torx screws in the fog light housing and remove it.
4. Disconnect the connector from the bulb.
5. Turn the bulb counterclockwise and pull it out.
6. Install the new bulb in its seat and turn it clockwise.
7. Reconnect the connector to the bulb.
8. Secure the fog light housing with the screws and press the panel back into place.
pg. 156 Replacing tail light bulbs
Removing the tail light bulb holder
All bulbs in the tail light cluster can be replaced from the trunk. To access the bulb holder:
1. Switch off all lights and turn the key to position 0.
2. Remove the covers in the left/right panels to access the bulbs.
3. Disconnect the wiring connector from the bulb holder.
4. Press the catches together and pull out the bulb holder.
5. Replace the defective bulb.
6. Press the wiring connector back into position.
file:///K|/ownersdocs/2006/2006_S40/06s40_10b.htm (6 of 14)12/30/2006 4:46:26 PM
