Spare wheel* and jack *
G000000
The car's original jack*
The original jack must only be used for chang-
ing wheels. The jack's thread should always be
well greased. The spare wheel* plus jack* and
wheel wrench* are stored under the floor in the
cargo area.
NOTE
Volvo recommends only using the jack* that
belongs to the car model in question, which
is indicated on the jack's label.
The label also indicates the jack's maximum
lift capacity at a specified minimum lifting
height.
Taking out the spare wheel
1. Fold the rear edge of the floor mat forward.
2. Release the spare wheel and lift it out.
3. Take out the jack and the wheel wrench.

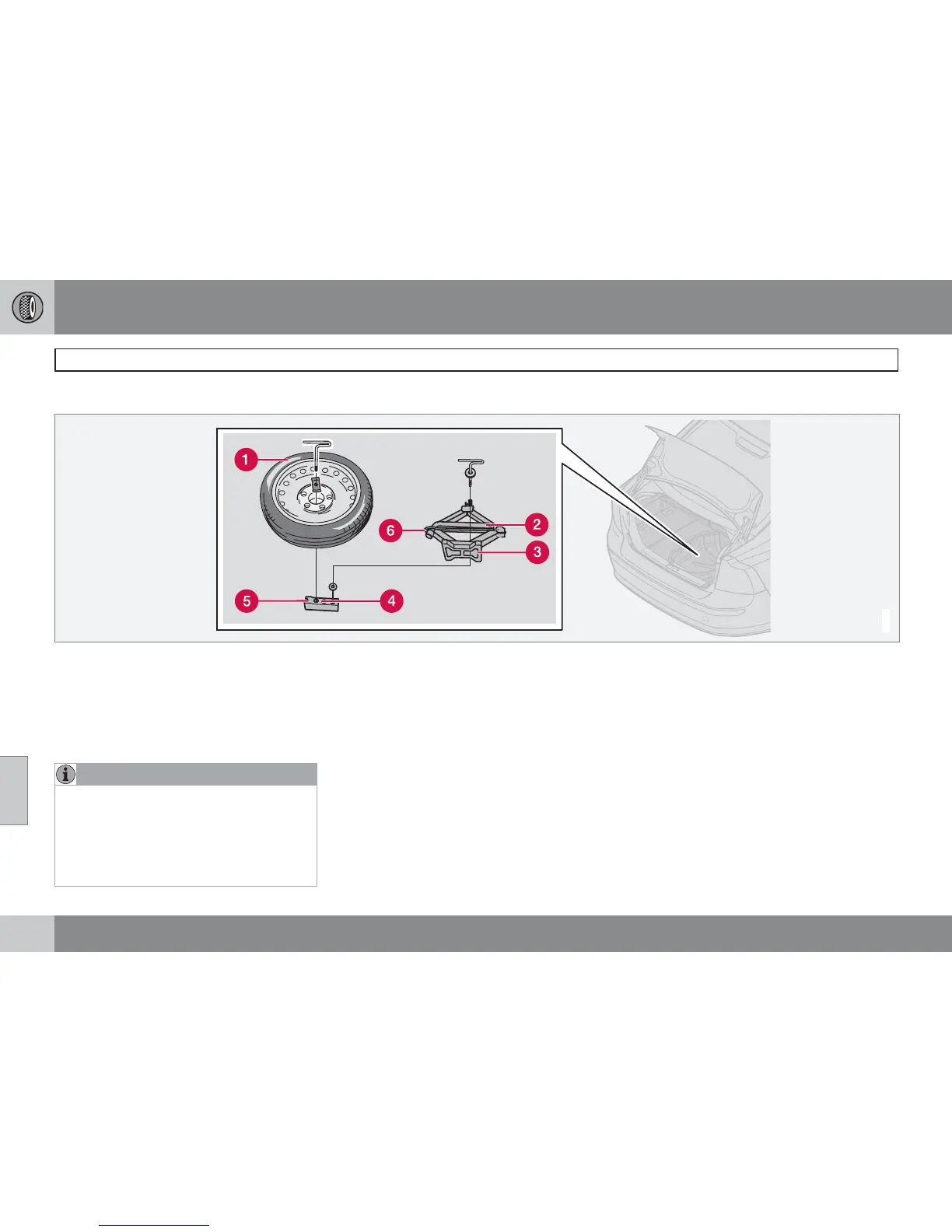

Putting the spare wheel* and jack* into
the cargo area
1. Crank the jack (3) to halfway in order that
the jack shall fit horizontally in the bracket.
2. Fold in the handle (6) and place the wheel
wrench (2) on the jack.
3. Put the jack (3) back in the hole on the right
(4). Fasten the spare wheel (1) in the hole
on the left (5).
Tools - returning into place
Tools and jack* must be returned into place in
the correct manner after use.
•
For cars equipped with spare wheel, the
jack must be cranked so that it fits into the
spare wheel.
•
For cars equipped with emergency punc-
ture repair kit, the jack must be fully
cranked together and returned into the
foam block.
