K — Warning Telltales, Center Section
W3003646

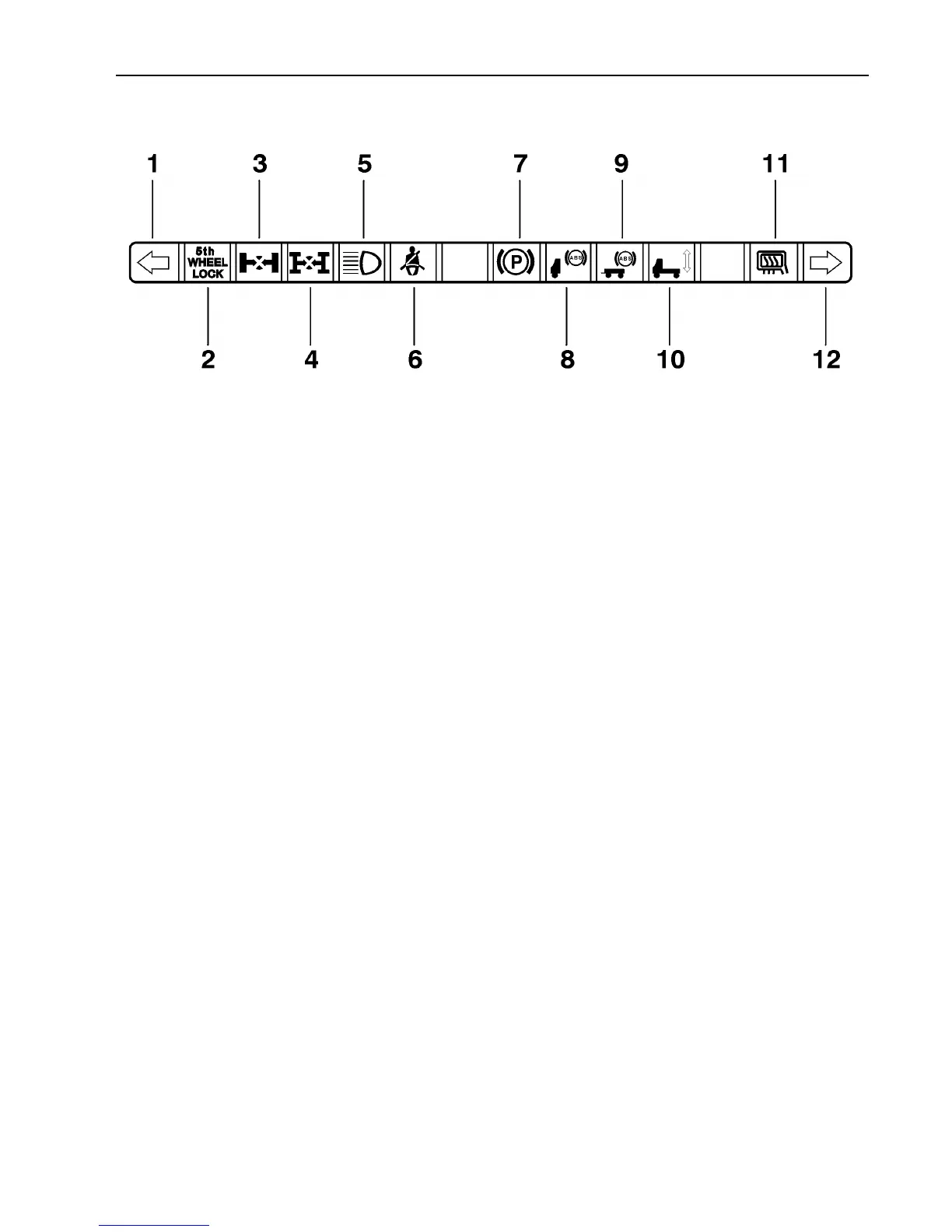

1 Left Turn Telltale ( page 86)
2 Fifth Wheel Lock Telltale ( page 86)
3 Wheel Diff. Lock Telltale ( page 86)
4 Interaxle Diff. Lock Telltale ( page 86)
5 High Beam Telltale ( page 87)
6 Safety Belt Telltale ( page 87)
7 Parking Brake Telltale ( page 87)
8 Anti-Lock Brake System (Tractor or
Truck) Telltale ( page 88)
9 Anti-Lock Brake System (Trailer)
Telltale ( page 88)
10 Air Suspension System Telltale
( page 88)
11 Mirror Defroster Telltale ( page 88)
12 Right Turn Telltale ( page 86)
NOTE! All telltales may not be used in all
vehicles.
The telltale strip is located below the
tachometer and speedometer. A yellow cau-
tion telltale indicates that there is a system
or component in the vehicle that requires
the operator’s attention. A red warning tell-
tale indicates that there is a system or
component that should be checked before
the vehicle is driven any further.
