3

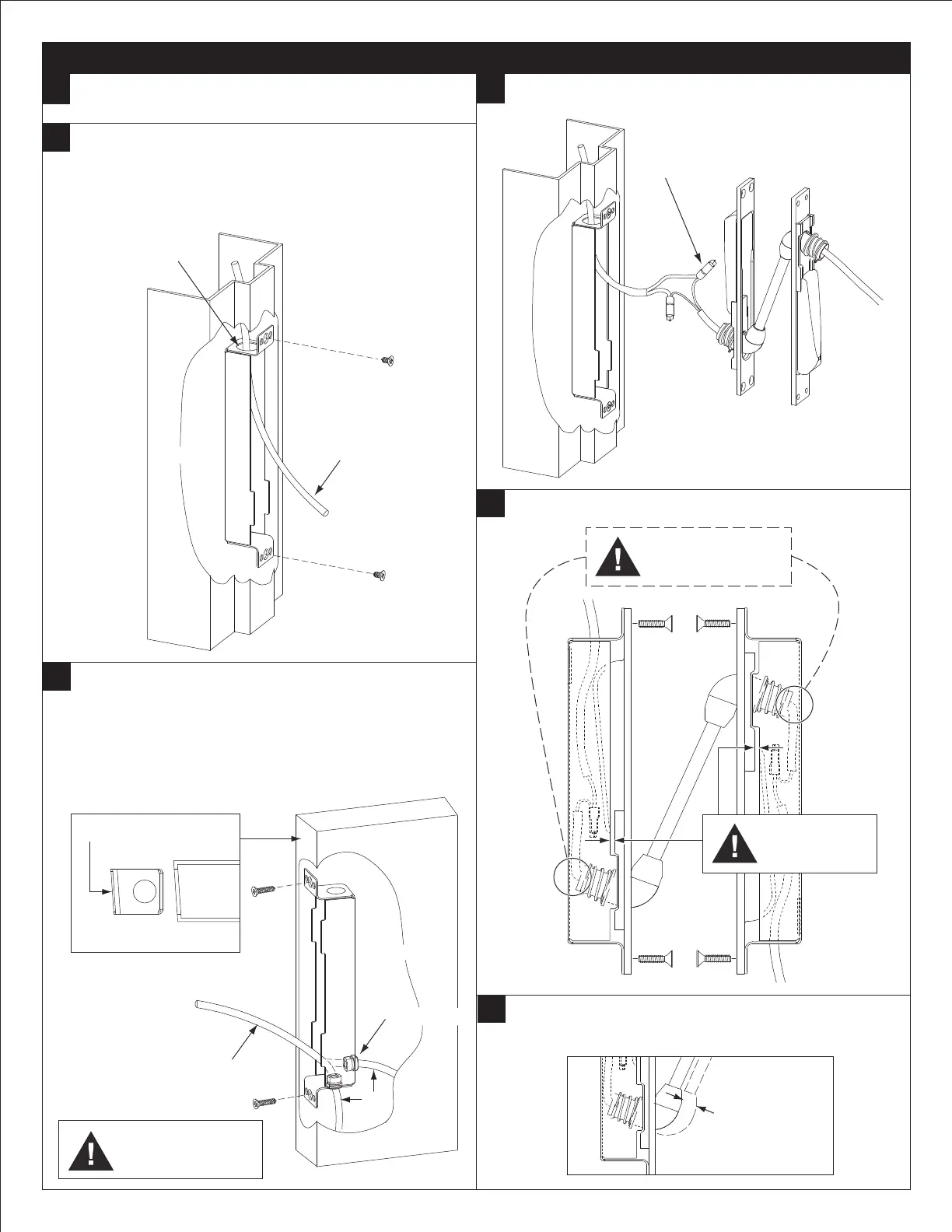

Installation
Mount Door Backbox
1
Use Template from Back Page to Verify Preparation
2
3
Top Knockout
(1/2”)
Mount Frame Backbox
A. Remove knockout from top
B. Install 1/2” conduit, if used
C. Pull 5” of field wiring through knockout
Field Wiring
A. Ensure backbox bevel matches door bevel
B. Remove knockout: - from bottom for metal doors
- from back for wood doors
C. Pull 5” of field wiring through knockout
D. Install strain relief
Field Wiring
Strain Relief
Frame
Door
OR
Door backbox bevel must
match bevel on door
Top View
Backbox is required for
fire wood doors. Rear
knockout must be used.
5
Mount EPT Assembly
4
Connect Wires
6
Verify that door opens and closes properly without
binding and that electrical components function
Connectors
Keep area under elbows free
of connectors. splices, and
field wiring cable
Do not pinch wires
between backbox and
EPT assembly
Elbows must have
approximately 1/2”
of free motion when
pulled straight out
Refer to wiring information
in product instructions
To Next Page
