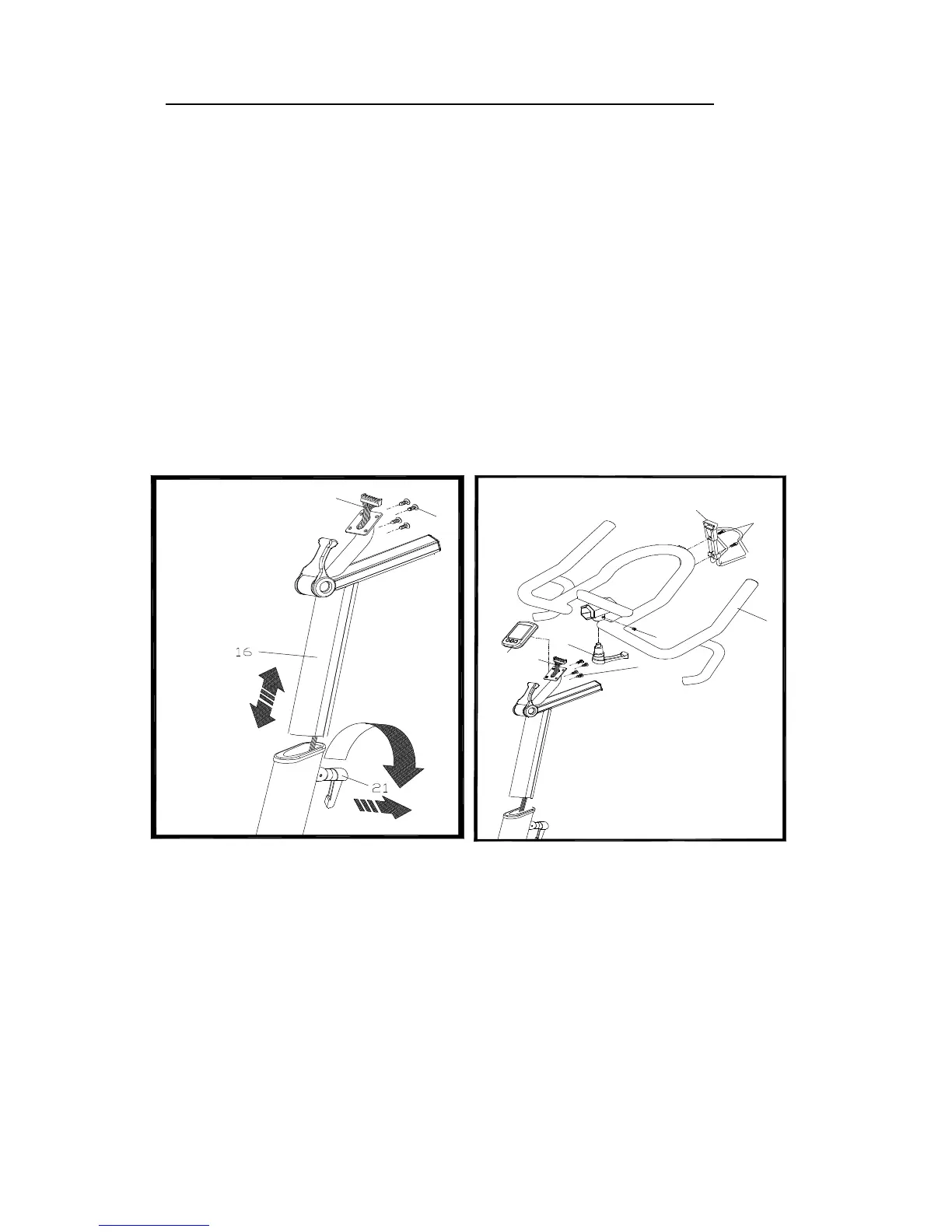

Step 4. &5 (handlebar & stem) and Console assemble
Insert stem into frame main tube then adjust handlebar stem (16) to a proper position
then using lock lever (21) to fixed .
Open safety screw(73) on the stem sliding tube then insert handlebar(11) onto stem's
sliding tube , move handlebar forward or backward until at a propor position then
use sliding tube's lock lever(21) to fix it and screw back the safety screw(73) .
Assemble console with cable and fix it onto bracket :
Unscrew console's fixing screw (8) from the console .
Connect cable (92) with console(9) then fix console on the bracket by screw back
4 fixing screw (8) .
Note:Be careful on the cable(92) do not be damage during it connect with the console
to assemble on the bracket .
