Integrated Quick Release Mount
1. To open the mount, depress the lock button and swing the
quick release mount lever 90 degrees to the open position.
2. Position the Micro3X down onto the rail in desired location
and move mount lever back to closed position.
3. Check lever closing tension. Lever should close with
moderate pressure using thumb or finger. It should not
require excess force to close. If lever won’t close, closes
with excess force or seems extremely easy to close with
little or no tension, proceed to step 4.
4. To adjust the tension, move the lever back to the open
position. Using a flat blade screwdriver or similar device,
turn the adjustment nut (pictured) left or right to loosen or
tighten (left-looser, right-tighter). Make small adjustments
of one or two clicks, then check lever closing tension. It
may be necessary to repeat this process a few times until
desired tension is achieved. Move lever back to closed
position after adjustment is complete.

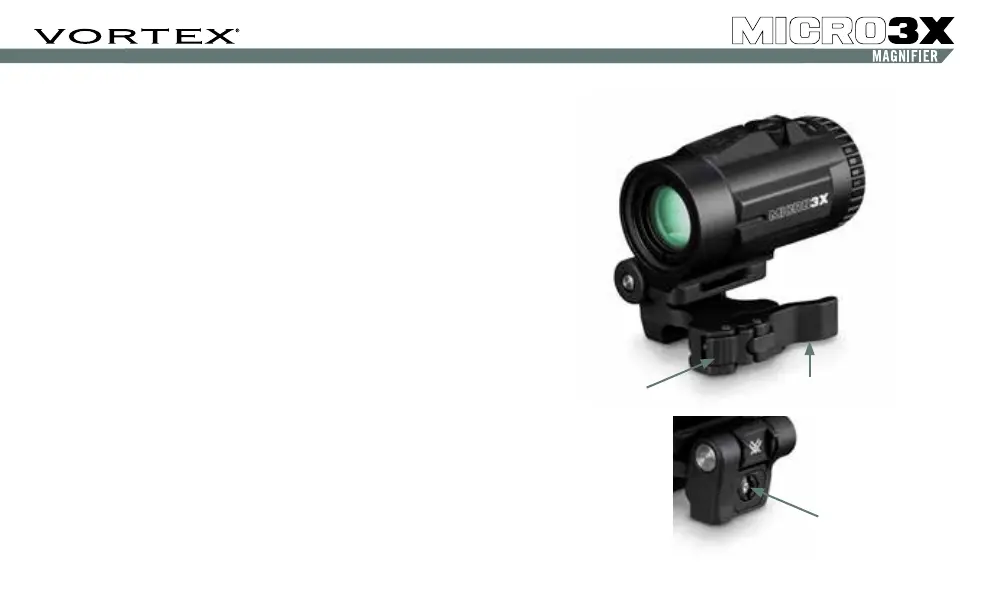

Quick Release Mount LeverLock Button
Adjustment Nut
