17
FOR INSTALLERS AND PROFESSIONALS

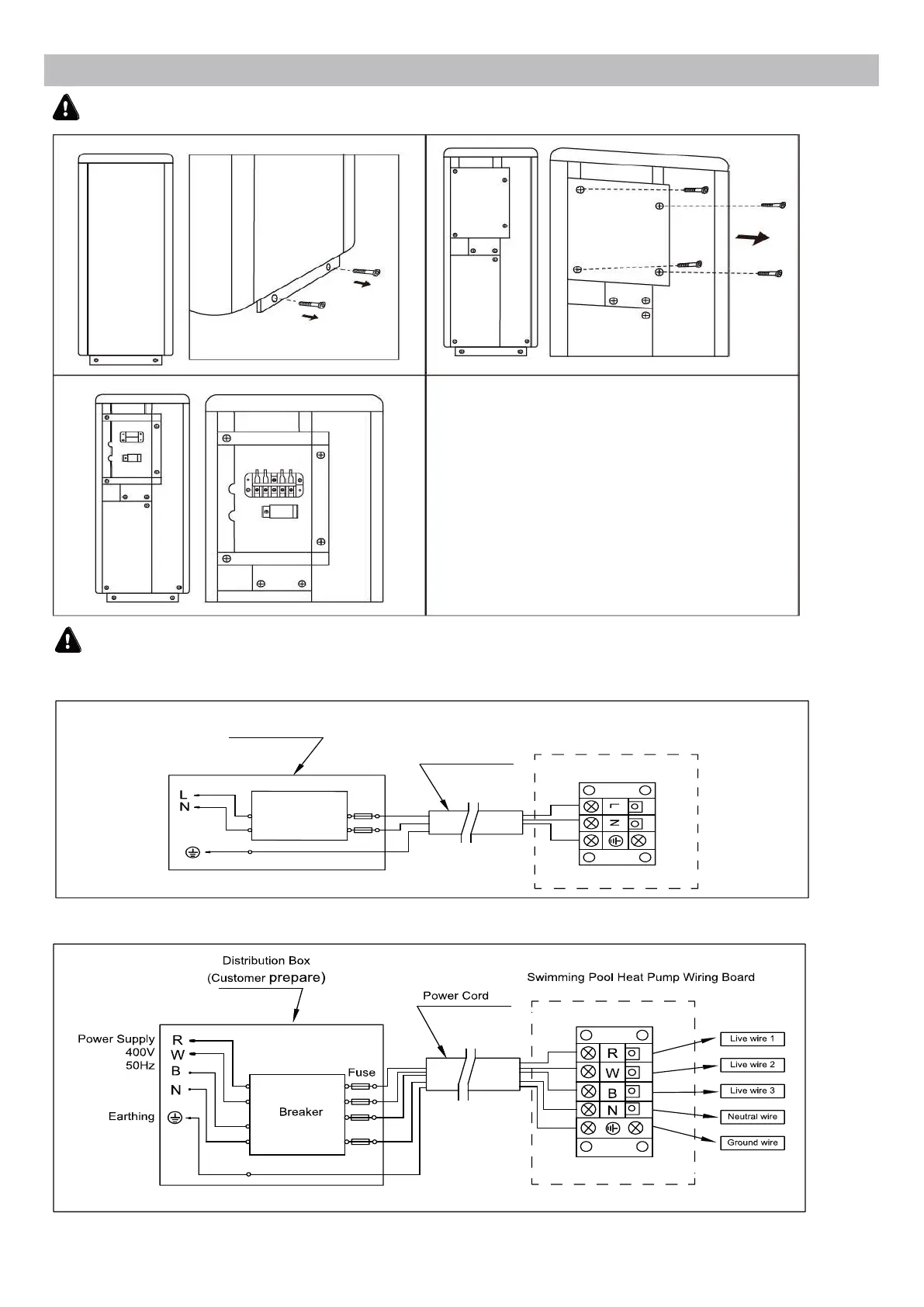

1. Connecting your power wire
2. Wiring diagram
A. For power supply: 230V 50Hz
Distribution Box (Customer prepare)
Power Cord
Swimming Pool Heat Pump Wiring Board
Power Supply
230V 50Hz Breaker
B. For power supply: 400V 50Hz
Fuse
Earthing
⟡ Please use cross screwdriver to take off
the 2 screws at the bottom of the right side
panel. Take off the lower half of the panel.
⟡ Unscrew the 4 screws on the cover of the
electrical box.
⟡ Connect the terminals according to the
electrical diagram.
To Next Page
