Vortex RECCE PRO HD - Basic Operation; Adjusting the Eyecups; Adjusting the Image Focus; Adjusting the Reticle Focus

4 5
RECCE PRO
®
HD
Rotate
to focus
Rotate
to focus
reticle

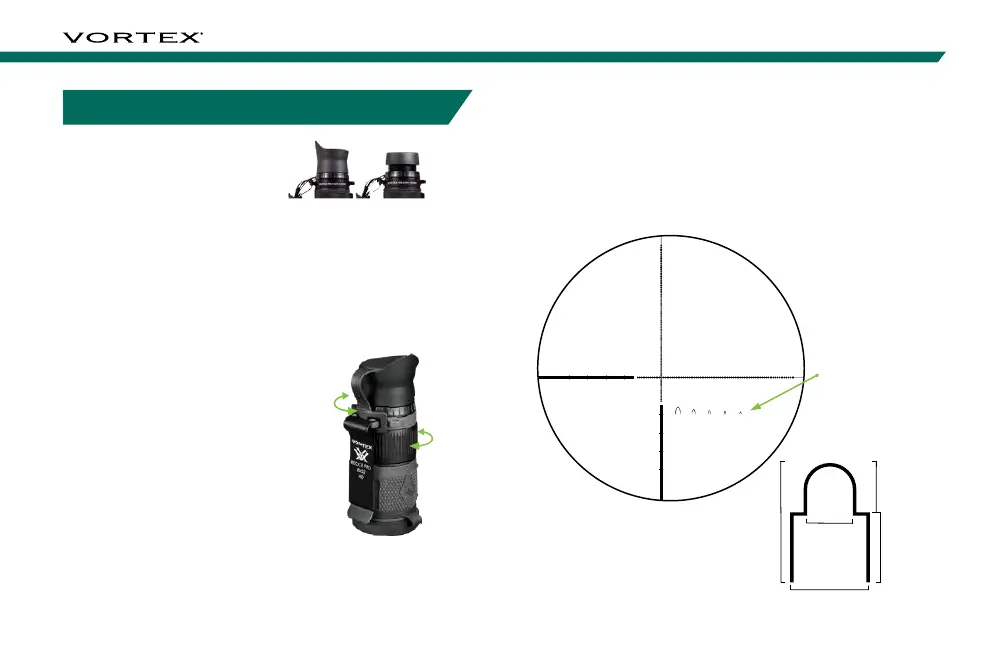

USING THE RANGING RETICLE
The R/T reticle is based on an angular measurement called
the milliradian (MRAD) which allows you to calculate ranges
when comparing the reticle to an object of a known dimension.
The key to effective ranging with this reticle is knowing the
measurements of common objects in your vicinity.
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10
8 6 4 2
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
2
4
6
8
10
12
20
40
20
40
200m 300m 400m 500m 600m
The R/T reticle uses a
system that is based
on a silhouette for
quick ranging.
All silhouette dimensions are
accurate at the listed ranges.
28 cm / 11"
50 cm / 20"
35 cm / 14"
44 cm / 17"
79 cm / 31"
BASIC OPERATION
Adjust eyecup for best viewing
Adjust the Eyecups
The heavy-duty Winged
Eyecup folds up and down
for optimal viewing with or
without eyeglasses. If you are viewing with eyeglasses, fold
the eyecup down for best viewing. The Eyecup will rotate
to accommodate use with either your left or right eye.
Adjust the Image Focus
To adjust the image focus,
rotate the Image Focus Wheel
until the image is in focus.
Adjust the Reticle Focus
The Reticle Focus Wheel
adjusts the sharpness of the
reticle. While looking at a
blank wall or blue sky, rotate
the Reticle Focus Wheel
until the reticle is in focus.
