Utility Clip
The versatile Utility Clip allows quick attachment of the
RECCO Pro
®
HD to WITH MOLLE/PALS webbing, pocket
edges, or other equipment.
Lanyard
The Lanyard can be worn around the neck or used as a
safety cord when carrying it by the Utility Clip.
Attach the Lanyard in a few simple steps:
ACCESSORIES
1. Detach the
clip from
the Lanyard.
2. Push the
loop end
through the
Lanyard
Attachment
point on the
monocular.
3. Pull the clip
through the
loop and
cinch tight.
4. Re-attach
the clip to
the Lanyard.

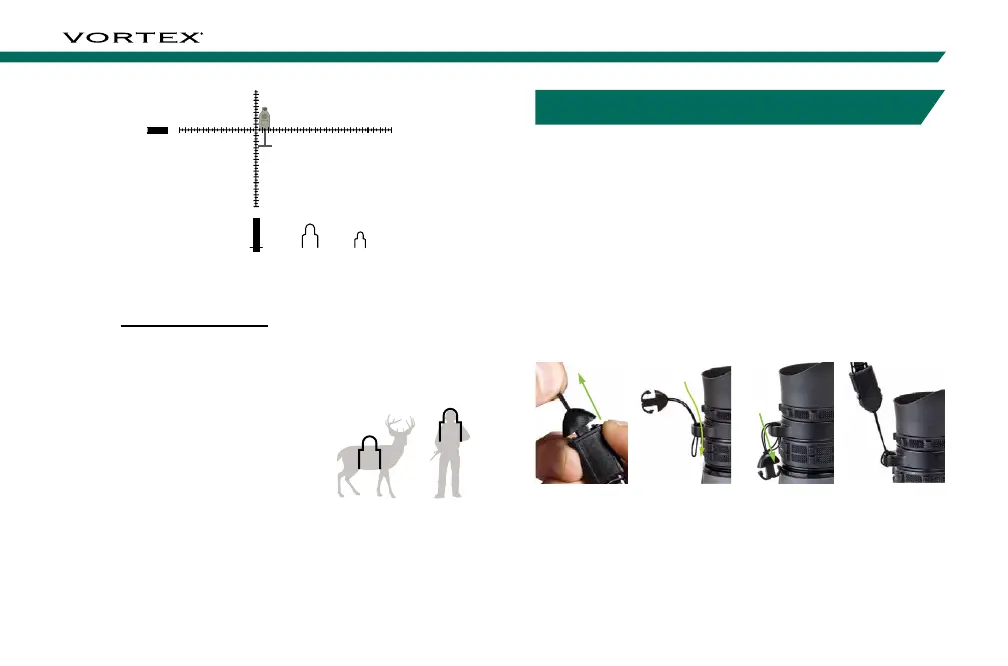

Quick Ranging with Silhouettes
The silhouettes used in the R/T reticle
are based on an average 20-inch
shoulder width and 11-inch head
width. To use, simply match the
object being ranged to the closet
silhouette in shape and read the
indicated yardage. You may also use
other dimensions on the silhouette
and compare to objects of known
dimension to obtain range estimation.
68
66
64
62
60
58
56
54
52
50
48
46
44
42
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
12 10
8 6 4 2
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
2
4
6
8
10
12
20
40
20
40
200m 300m 400m 500m 600m
Ranging a 6' target (2 yards) at 4 MRAD yields 500 yards.
2 yds.
4 MRAD
x 1000
= 500 yds.
200m 300m
200m 300m
