Vortex SOLO R/T User Manual

4 5
SOLO
®
R/T

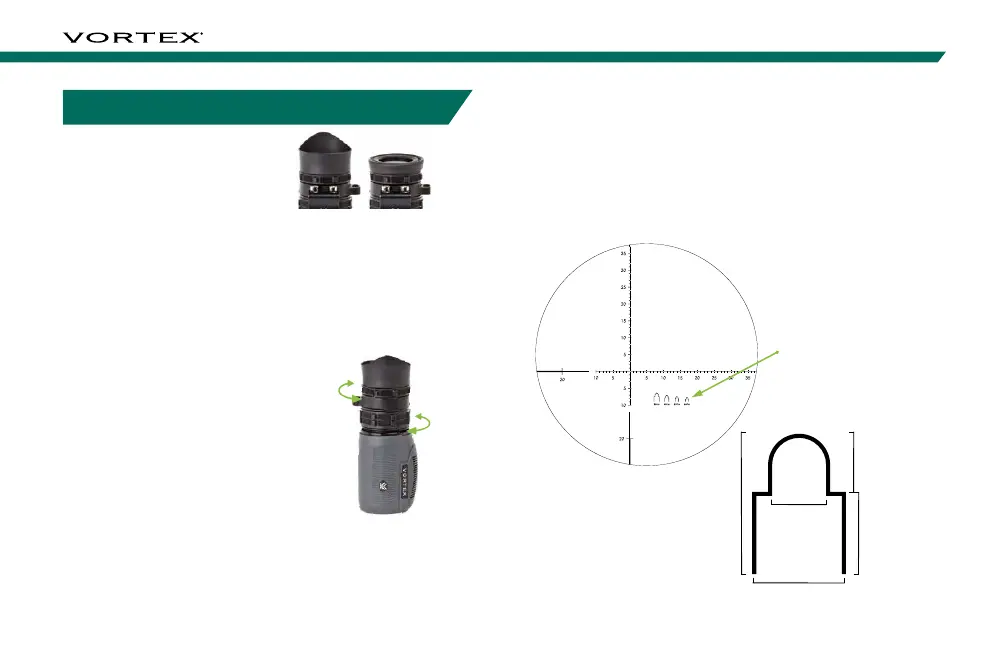

BASIC OPERATION
Adjust eyecup for best viewing
Adjust the Eyecups
The heavy-duty Winged
Eyecup folds up and down
for optimal viewing with or
without eyeglasses. If you are viewing with eyeglasses, fold
the eyecup down for best viewing. The Eyecup will rotate
to accommodate use with either your left or right eye.
Rotate
to focus
Rotate
to focus
reticle
Using the R/T Ranging Reticle
The R/T ranging reticle is based on an angular
measurement called the milliradian (MRAD) which allows
you to calculate ranges when comparing the reticle to an
object of a known dimension. The key to effective ranging
with this reticle is knowing the measurements of common
objects in your vicinity.
28 cm / 11"
50 cm / 20"
35 cm / 14"
44 cm / 17"
79 cm / 31"
All silhouette dimensions are
accurate at the listed ranges.
The R/T reticle uses a
system that is based on a
silhouette for quick ranging.
Adjust the Image Focus
To adjust the image focus,
rotate the Image Focus Wheel
until the image is in focus.
Adjust the Reticle Focus
The Reticle Focus Wheel
adjusts the sharpness of the
reticle. While looking at a
blank wall or blue sky, rotate
the Reticle Focus Wheel
until the reticle is in focus.

Vortex SOLO R/T Specifications

General

Magnification	8x
Objective Lens Diameter	36 mm
Field of View	393 feet/1000 yards
Eye Relief	18 mm
Waterproof	Yes
Fogproof	Yes
Exit Pupil	4.5 mm
Angular Field of View	7.5 degrees
Lens Coating	Fully Multi-Coated
Prism System	Roof
Prism Glass	Bak-4
