VX-P820/-P870 SERIES OPERATING MANUAL
5
ABC D

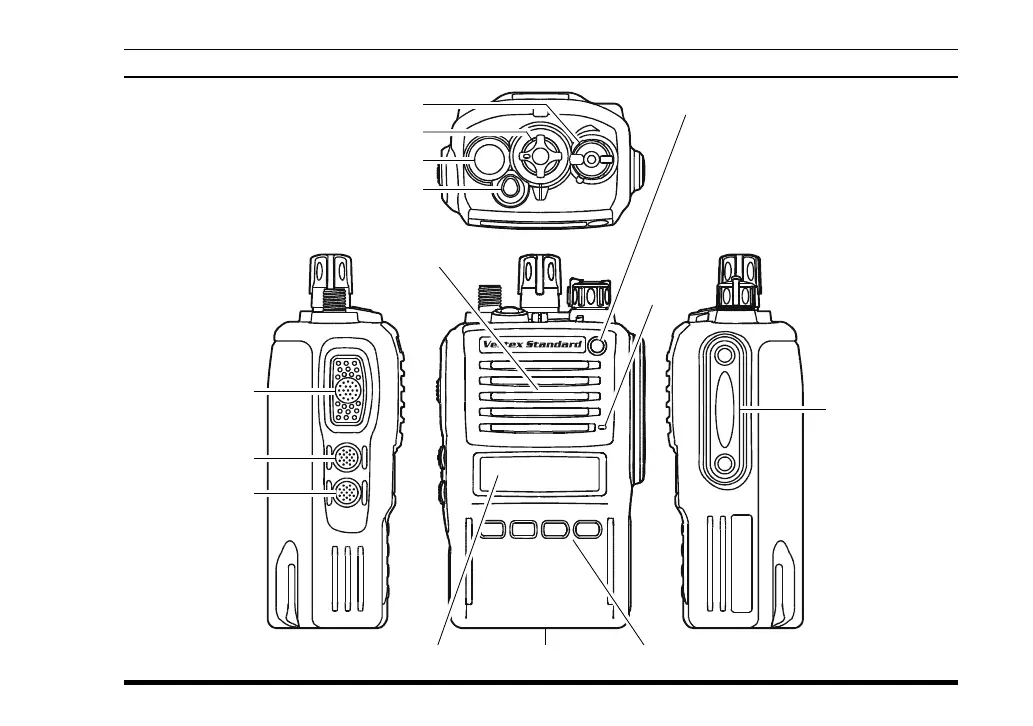

CONTROLS & CONNECTORS
(
4-KEY VERSION
)
PTT Switch
MONITOR Button
LAMP Button
MIC/SP Jack
(
External MIC/SP
)
Battery Pack LatchLCD
(
Liquid Crystal Display
)
Speaker
Microphone
LED Indicator
Steady Red:
Transmitting in progress
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Dealer Programmed Color

:
Emergency, 5-Tone Decoded, or
2-Tone Decoded
4-Button Programmable Key
Antenna Jack
TOP SEL Key
CH
(
Channel
)
Selector
VOL/PWR Knob

: one of “Flashing in white,”
“Continuation changes in
sequential colors,” or “tog-
gling the two colors.”
