2. Connecting port
Plugs can be connected directly to system components if they are equipped with the special
connecting port for VOSS quick connect system 246. For other types of connections VOSS offers
a wide range of adapters, inline connectors and manifolds. The connecting port is made of nylon
or metal.
If necessary, VOSS will provide detailed specifications of the connecting port. The connecting
port for quick connect system 246
NX
and ports for previous 246 system variants (e.g. 246
Standard, 246
AX
) are identical.

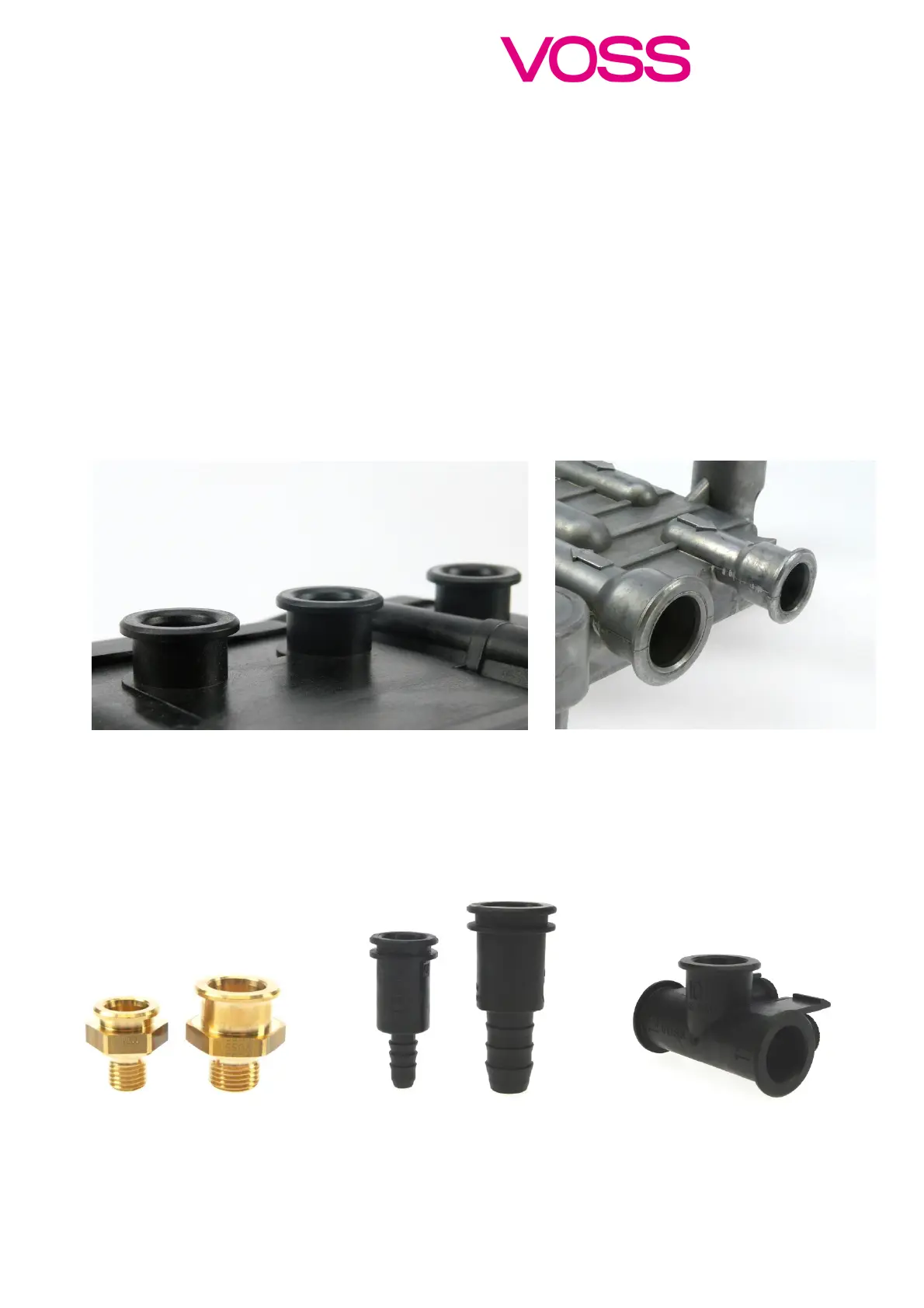

Fig. 3: System component with nylon ports Fig. 4: System component with aluminum ports
Fig. 5: Adapters Fig. 6: Inline connectors Fig. 7: T-manifold
