Installation method and precautions for the wing

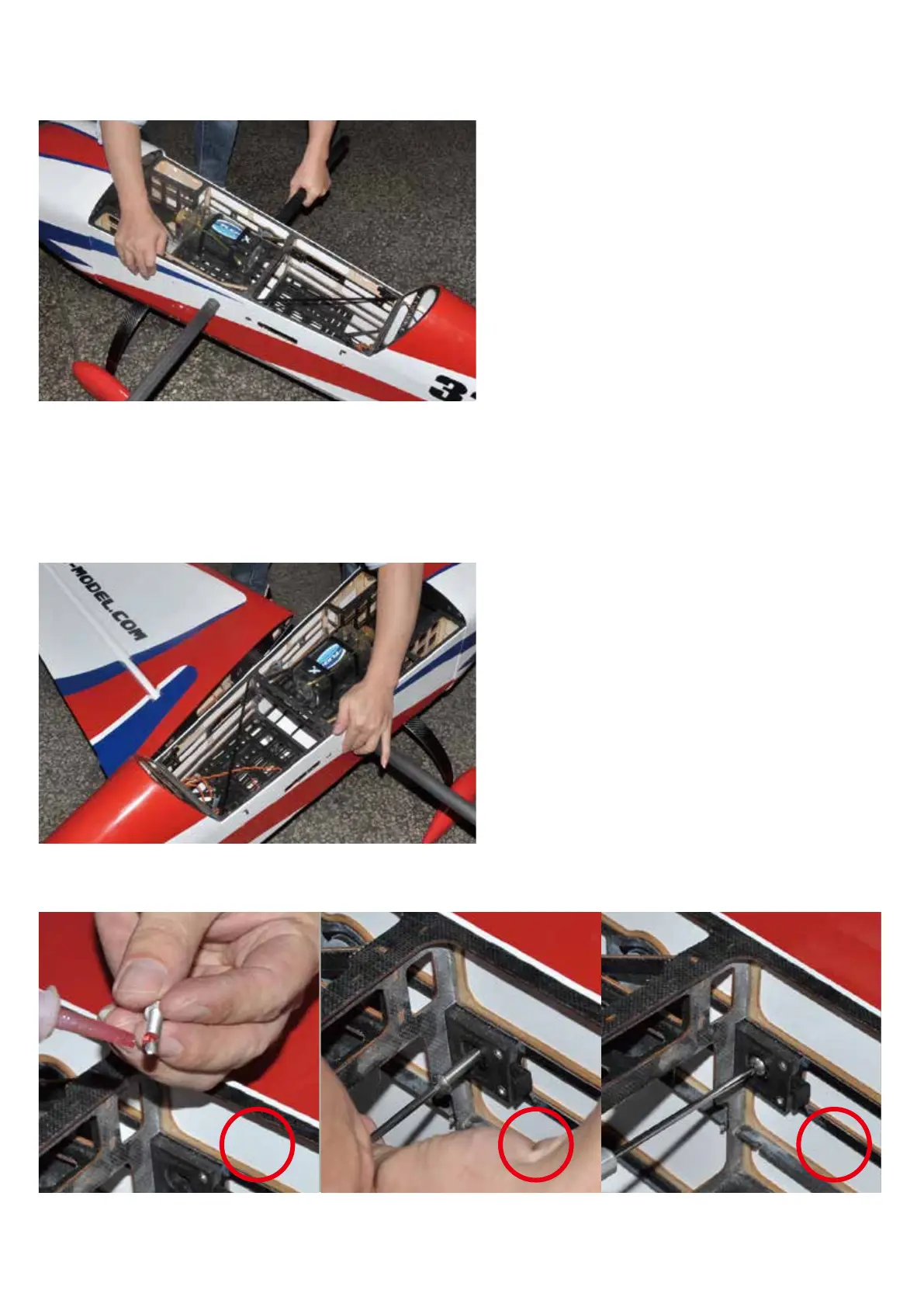

Pass the carbon fiber tube through the
pre-drilled holes in the fuselage.
Put the wing into the carbon fiber tube,
and put the rudder connector
Put the rudder connector into the fuselage
through the reserved hole;
For the first time use, you need to operate
the screws for fixing according to the
following figure;
1. Apply strong screw glue to the screws
as shown in Figure 1;
2. Put the screws into Figure 2 and screw
the screws to the proper position Fig. 3;
21 3
