- 3 -

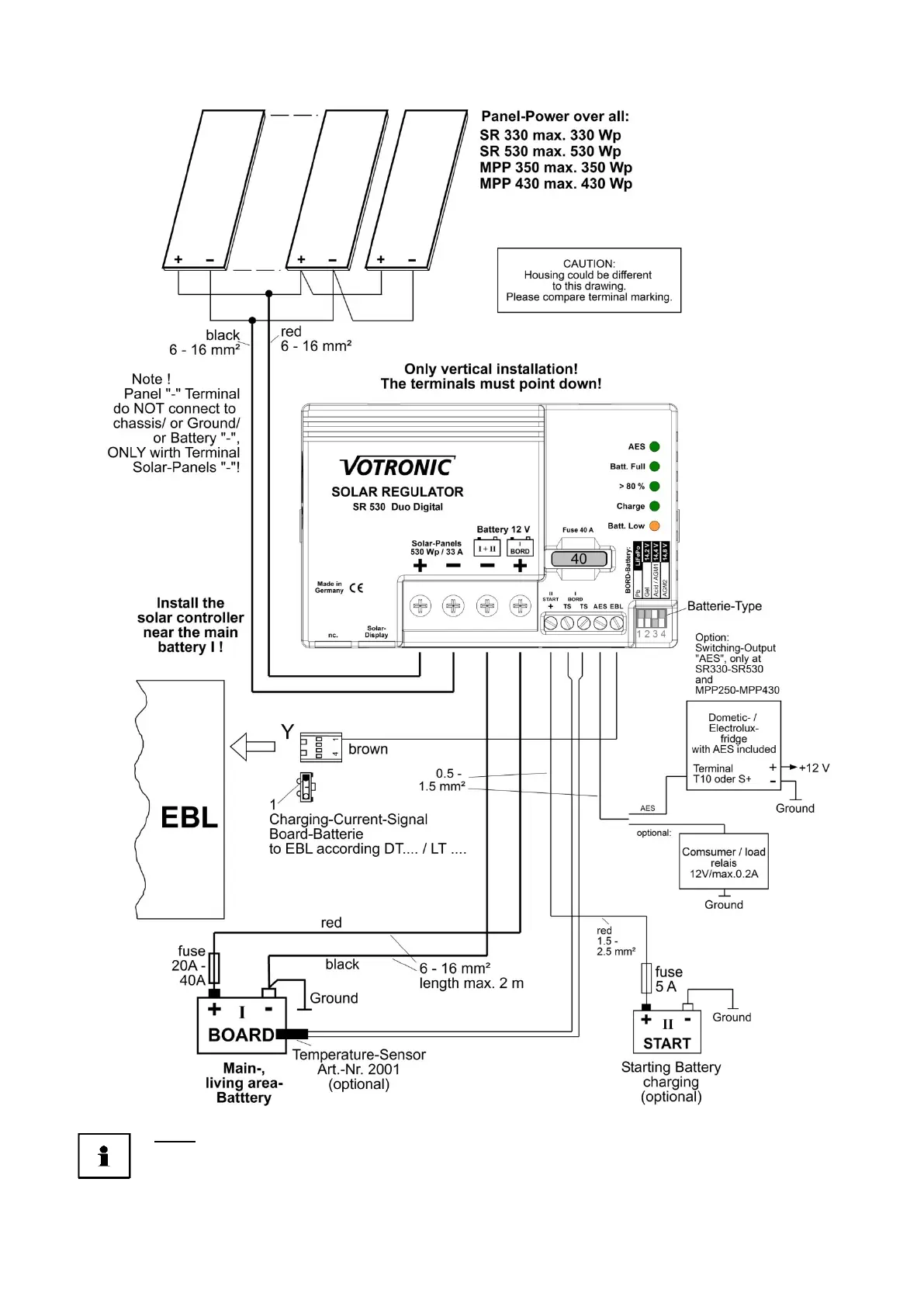

2.) Connection Plan SR 330/530 Duo Digital and MPP 350/430 Duo Digital:
Never lead the charging cables over the solar connection of the EBL, since eventually existing
charging currents supplied by the efficient solar controllers might be too high!
Therefore, the solar controllers must be connected directly to the main (living area) battery,
X cable is not used. Please observe the indicated cross-sections and lengths of the cables.
The display of the solar current on the EBL is still effected by the cable "Y".
