4

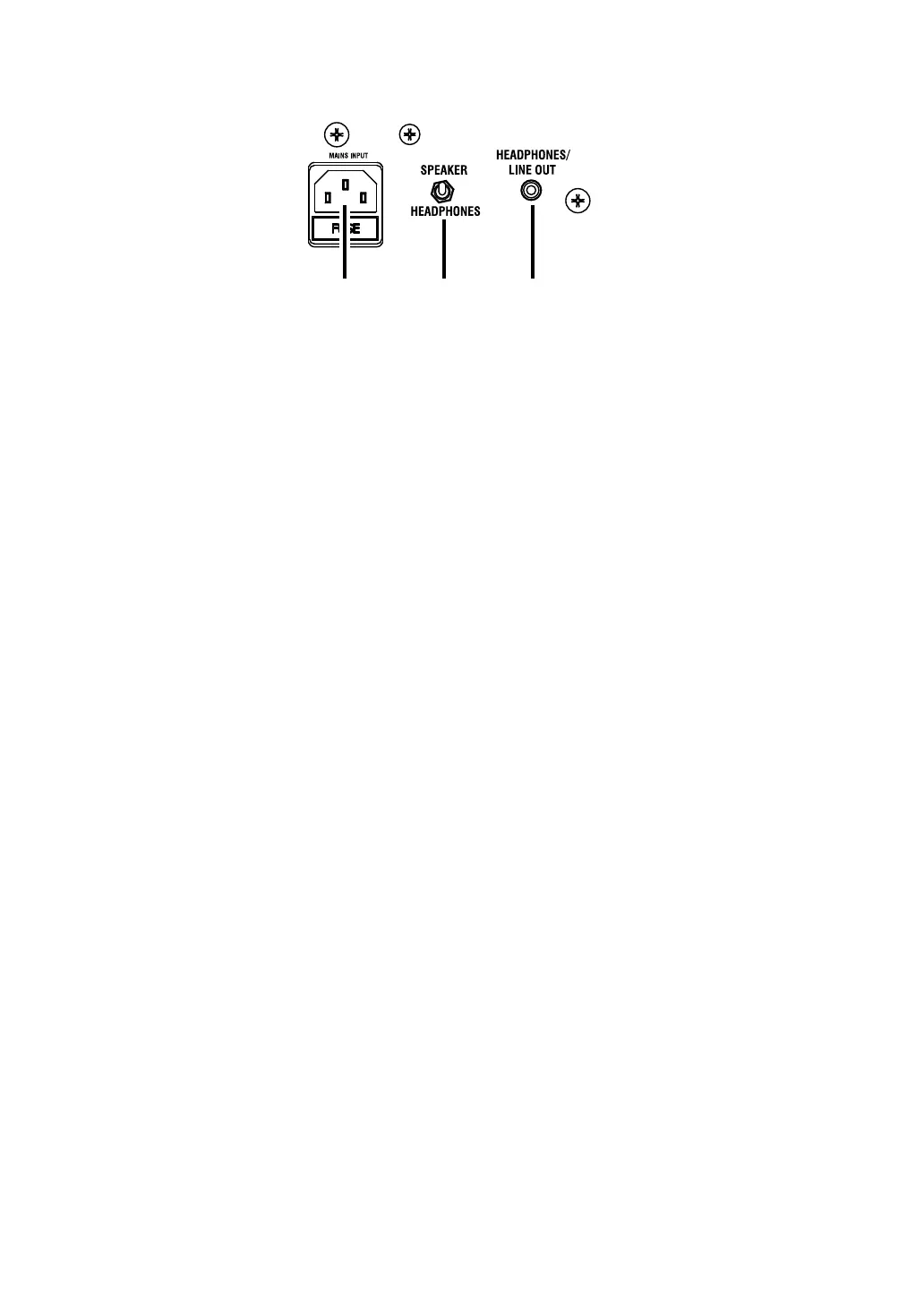

REAR PANEL LAYOUT
1. MAINS INPUT Connect your supplied mains power lead here
NOTE: Use only the power cable th
at is included with the AC4C1-MINI. Using
another power cable may cause malfunctions.
The specific mains input voltage rating that your amplifier needs to run
at is located on the rear pa
nel of your amplifier. Before making any
connections or powering up the amplifier, make sure the correct volt-
age is set. If you have any doubt, re
fer to your lo
cal VOX dealer.
2. HEADPHONS/LINE OUT Jack
Connect you favourite stereo headphones here, or con
nect directly to
your favourite recording rig. The output from this jack passes through
a cabinet simulator. So you can enjoy authentic tube amp tone
through your headphones!
3. SPEAKER/HEADPHONES switch
Select output from either speaker or headphones.
NOTE: Please
ensure that the
switch on the rear of the amplifier is set to your
desired output otherwise no sound will be heard.
SPECIFICATION
• Controls: Gain, Bass, Treble, Volume
• Input: Guitar In
• Output: HEADPHONS/LINE OUT
• Tube complimen
t 2 x 12AX7, 1 x EL84
• Output Power: 4 W
RMS (16Ω)
• Spea
ker: VOX Custom 1 x 6.5" (16Ω)
• Dimensions (W x D
x H): 348 x 189 x 2
92 mm /13.7 x 7.44 x 11.5 inches
• Weight: 6.4 kg / 14.11lbs.
• Ac
cessory: Power Cable, Manu
al
*Specifications and appearance are subject to change without notice for improvement.
