Monitor

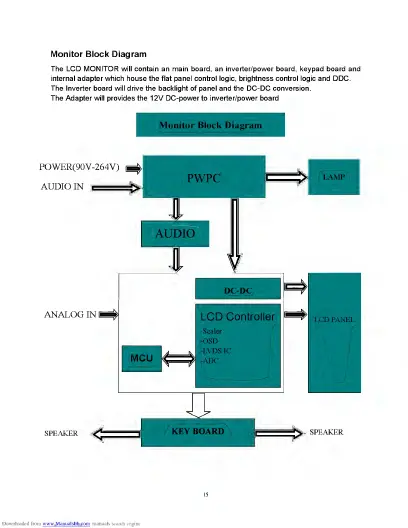

Block
Diagram
The
LCD
MONITOR
will
contain
an
main
board,
an
inverter/power
board,
keypad
board
and
internal
adapter
which
house
the
flat
panel
control
logic,
brightness
control
logic
and
DDC.
The
Inverter
board
will
drive
the
backlight
of
panel
and
the
DC-DC
conversion.
The
Adapter
will
provides
the
12V
DC-power
to
inverter/power
board
