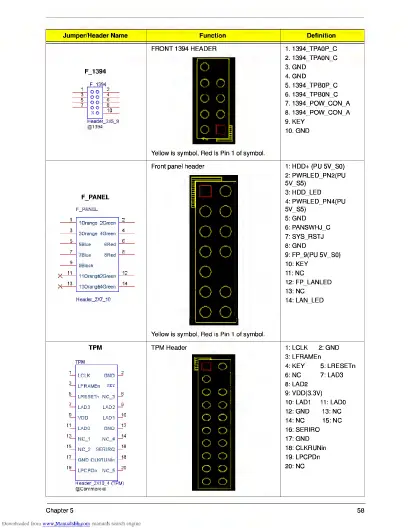

1. 1394_TPA0P_C
2. 1394_TPA0N_C
3. GND
4. GND
5. 1394_TPB0P_C
6. 1394_TPB0N_C
7.1394_POW_CON_A
8.1394_POW_CON_A
9. KEY
10. GND
Yellow is symbol, Red is Pin 1 of symbol.
Chapter 5
