Removal and Replacement Procedures 2-53
Processor Terminator Boards
Processor terminator boards occupy unused processor sockets on the processor board.
To remove a processor terminator board:
1. Perform the preparation procedures. See “Preparation Procedures” earlier in this chapter.
2. Remove the right side access panel. See “Right Side Access Panel” earlier in this chapter.
3. Remove the main processor air baffle. See “Main Processor Air Baffle” earlier in
120 degrees O, then slide the processor terminator board out the right side of the server ©.

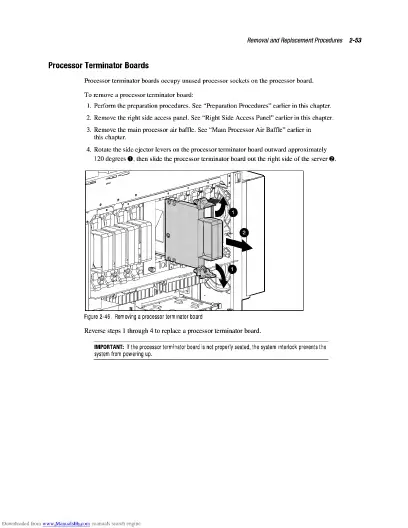

Figure 2-46. Removing a processor terminator board
IMPORTANT: If the processor terminator board is not properly seated, the system interlock prevents the
system from powering up.
