Removal
and
Replacement
Procedures
2-55
Power
On/Standby
Switch
and
Cable
Assembly
To
remove
the
Power
On/Standby
switch
and
cable
assembly:
1.
Perform
the
preparation
procedures.
See
“Preparation
Procedures”
earlier
in
this
chapter.
2.
Remove
the
access
panel.
See
“Access
Panel
(Tower
and
Rack)”
earlier
in
this
chapter.
3.
Remove
the
hard
drive
fan
air
baffle.
See
“Hard
Drive
Fan
Air
Baffle”
earlier
in
this
chapter.
4.
Disconnect
the
power
switch
cable
O
from
the
power
backplane
board.
5.
Press
the
tabs
©
inward
on
both
sides
of
the
switch.
NOTE:
Compaq
recommends
pressing
the
tabs
with
a
4-mm
flat-blade
screwdriver.
6.
With
the
tabs
released,
pull
the
switch
and
cable
assembly
©
out
the
front
of
the
bezel.

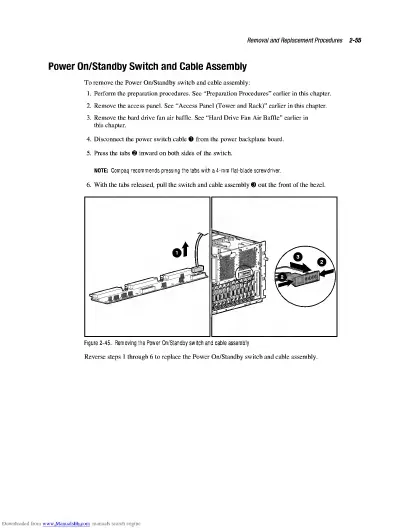

Figure
2-45.
Removing
the
Power
On/Standby
switch
and
cable
assembly
