The ACA801 License Plate Mount Camera is a sophisticated backup camera system designed to enhance driving safety by providing a broader rear view of the vehicle. This device integrates a high-quality camera with your vehicle's rear license plate, ensuring that the license plate itself remains unobstructed. Its primary function is to assist drivers when reversing, allowing for safer maneuvers and reducing the risk of accidents. The system is compatible with most monitors and TFT screens, connecting via a standard RCA connector, making it a versatile addition to various vehicle setups.

Function Description

The core function of the ACA801 is to capture and transmit a real-time video feed of the area behind your vehicle to a monitor inside the cabin. This video feed is activated when the vehicle is put into reverse, providing an immediate visual aid to the driver. The camera is designed to offer a clear and wide-angle view, compensating for blind spots that traditional mirrors might miss. This is particularly useful in crowded parking lots, driveways, or any situation requiring precise backing up.

The system comprises several key components working in concert:

Camera + License Plate Mount (Part # 4360614): This is the central component, housing the camera itself and designed to integrate seamlessly with the vehicle's license plate. It can be mounted either above or below the license plate, offering flexibility based on vehicle design and user preference.
Mounting Bracket (Part # 4460036): An additional bracket is provided for surface mounting options, allowing for alternative installation methods if the license plate mount is not suitable or desired.
Power Cable (Part # 4120334): This cable supplies power to the camera, typically wired to the vehicle's reverse lamp. This ensures the camera activates automatically when the vehicle shifts into reverse. It includes a 5 AMP fuse for circuit protection.
Video RCA Cable for Cameras (Part # 4120335): This cable transmits the video signal from the camera to the monitor. Its standard RCA connector ensures broad compatibility with various display units.
Screws (Part # 4060049, 4060050): These are included for securing the camera and bracket during installation.

The installation process involves routing the camera's power and video cables through the vehicle. The power cable connects to the reverse lamp's positive 12-volt wire and to ground, while the video cable runs from the camera to the monitor. This setup ensures that the camera receives power and transmits video only when needed, conserving energy and preventing unnecessary display activity. The system's design emphasizes ease of installation, with clear instructions provided for both license plate and surface mount configurations.

Usage Features

The ACA801 is engineered for straightforward and reliable operation, offering several features that enhance its usability:

Automatic Activation: The camera automatically powers on and displays the rear view on your monitor when the vehicle is shifted into reverse. This eliminates the need for manual activation, allowing the driver to focus on the task of reversing.
Flexible Mounting Options: The camera can be mounted in two primary ways:
- License Plate Mount: This is the most common and discreet method. The camera bracket is placed behind the license plate, and both are fastened to the vehicle using the provided anti-theft screws. The camera itself can be positioned above or below the plate. If mounted at the bottom, the camera can be flipped to ensure the picture is displayed correctly (not upside down). This method ensures the camera is integrated without obstructing the license plate information.
- Surface Mount: For vehicles where a license plate mount isn't ideal or for alternative placement, a separate surface mounting bracket is included. This allows the camera to be attached to a suitable flat surface on the vehicle, provided it doesn't interfere with other equipment or block the line of sight.
Wide Compatibility: The use of a standard RCA connector for video output makes the ACA801 compatible with a vast array of aftermarket monitors and TFT screens. This broad compatibility means users can integrate the camera with their existing display systems or choose from a wide range of new monitors.
Durable Design: The components are designed to withstand typical automotive environments. However, users are advised to handle all components with care and avoid applying excessive force during installation to prevent damage.
Clear Visual Aid: The camera provides a clear visual feed, significantly improving the driver's perception of the rear surroundings. This is crucial for avoiding obstacles, pedestrians, and other vehicles when backing up.

Maintenance Features

While the ACA801 is designed for durability and minimal maintenance, certain aspects ensure its longevity and proper functioning:

Regular Inspection: It is recommended to regularly inspect all components and cabling for any signs of damage. This includes checking for frayed wires, loose connections, or physical damage to the camera unit or brackets. Early detection of damage can prevent further issues and ensure continuous operation.
Proper Cable Routing: During installation, careful routing of the camera wiring is crucial. The manual emphasizes ensuring that cables are not damaged or pinched, as this can lead to a short circuit and void the warranty. This proactive approach to installation serves as a key maintenance feature, preventing future problems.
Rust Prevention (for drilled holes): If drilling a hole to route the camera cable, the manual instructs users to coat the edge of the hole with rust preventative. This step is vital for preventing corrosion, which could compromise the vehicle's body and the integrity of the cable entry point.
Grommet Usage: Inserting a grommet into any drilled hole is essential to keep water from entering the vehicle. This protects the interior of the vehicle from moisture damage and safeguards the electrical connections from water ingress, which could lead to malfunctions.
Fuse Protection: The power cable includes a 5 AMP fuse. This fuse acts as a safety mechanism, protecting the camera and the vehicle's electrical system from power surges or short circuits. If the camera stops working due to an electrical issue, checking and replacing the fuse might be the first step in troubleshooting.
Adherence to Installation Procedures: Following the installation manual precisely is the most important maintenance feature. Improper installation or modification of the product can void all warranties and potentially lead to malfunctions or damage. By adhering to the guidelines, users ensure the system operates as intended and remains covered by the warranty.
Avoiding Excessive Force: The manual explicitly warns against applying excessive force to any components. This is a critical maintenance guideline, as physical damage due to mishandling can render parts non-functional and void warranties.

In summary, the ACA801 License Plate Mount Camera is a user-friendly, robust, and effective solution for enhancing rear visibility and driving safety. Its thoughtful design, flexible installation options, and emphasis on proper setup contribute to a reliable and long-lasting performance.

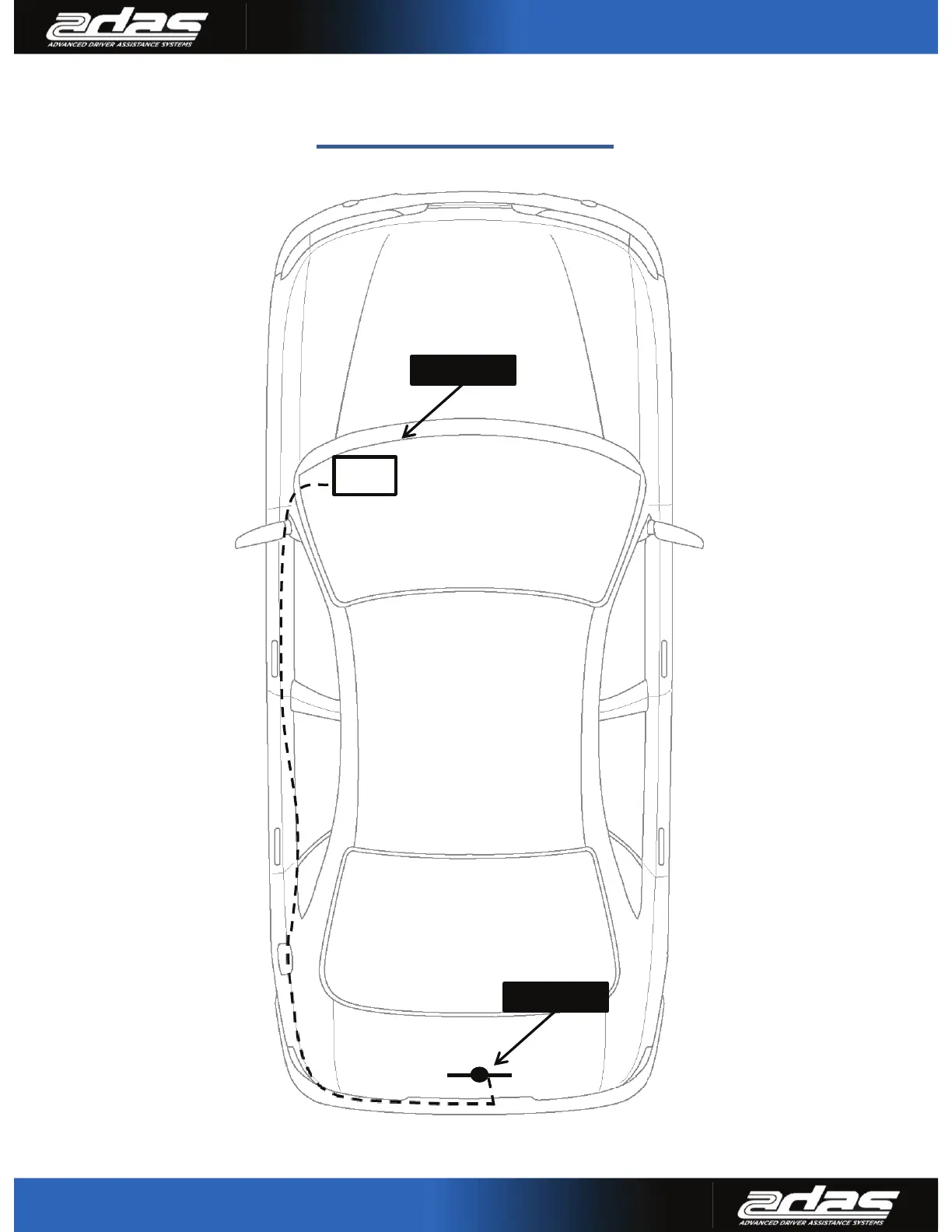

Voxx ACA801 - System Layout
