VPC ICON - SECTION 1 ICON PART IDENTIFICATION; ICON RECEIVER PART IDENTIFICATION

ICON USER’S MANUAL: SECTION 1 VIRGINIA PANEL CORPORATION
1-1 For the most current information available, visit www.vpc.com
6/7/18
iCON RECEIVER PART IDENTIFICATION
PART # 310 123 XXX
Figure A points out distinguishing features of the iCon receiver so that the top and
bottom can be identied. Features to look for are the alpha keying receptacle on
the top side and the numeric keying receptacle on the bottom. By holding the iCon
receiver, the top can be determined by holding it so the letters and numbers are
readable.
The front and rear of the iCon receiver are shown in Figure B. The front has a polarizing
feature which prevents the ITA and receiver from being engaged in the incorrect
orientation. The front of the iCon receiver can be identied as the side with the
latching feature.
The front side mates with the iCon ITA. Wires exit the iCon receiver from the rear side.

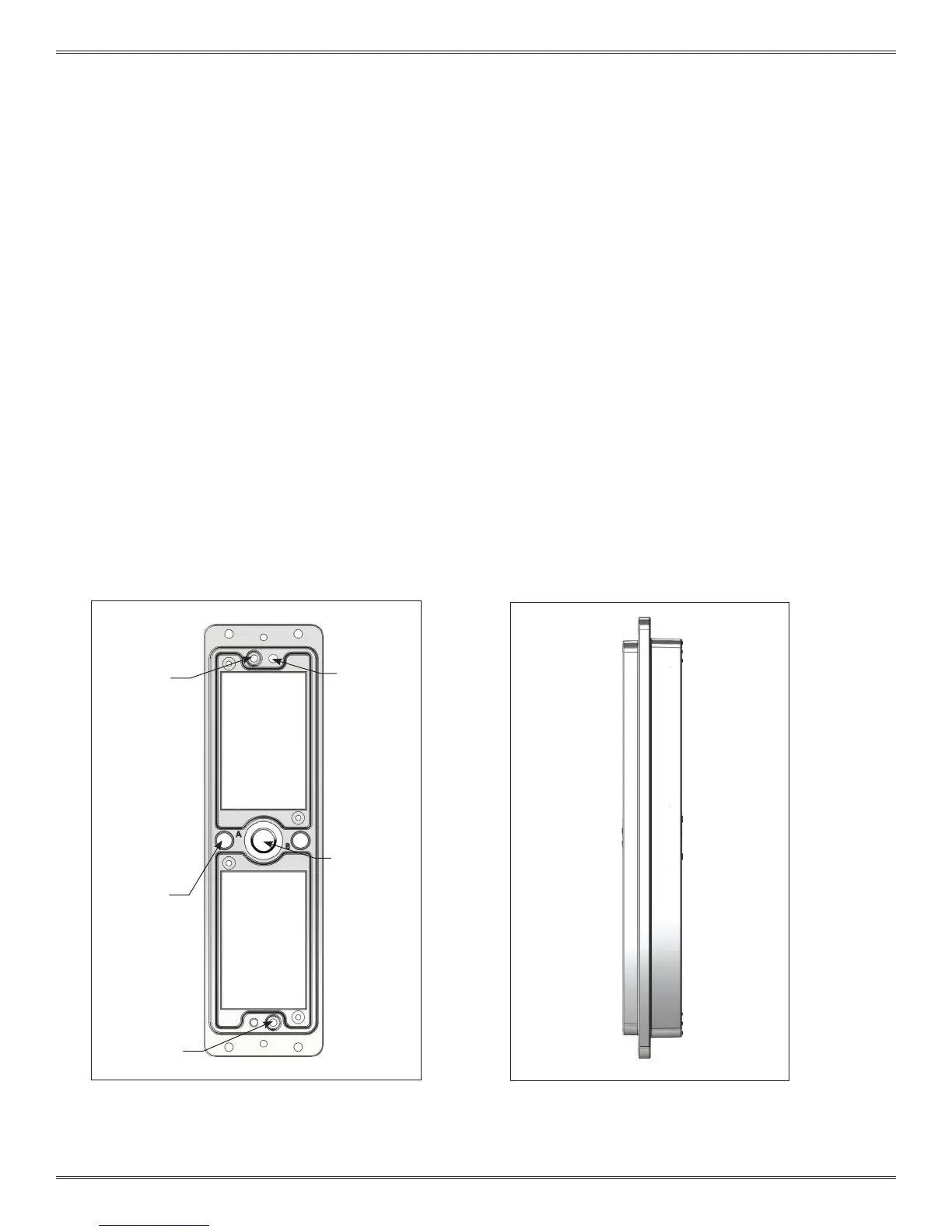

Figure A. iCon receiver front view.
Figure B. iCon receiver side view.
Alpha Keying
Receptacle
Numeric Keying
Receptacle
Top
Bottom
Rear
Mating
Side
Front
Wiring
Side
Polarizing
Feature
Receptacle
Locking
Mechanism
Receptacle
Guide Pin
Receptacle
