Load cell KxxD-(D)
7

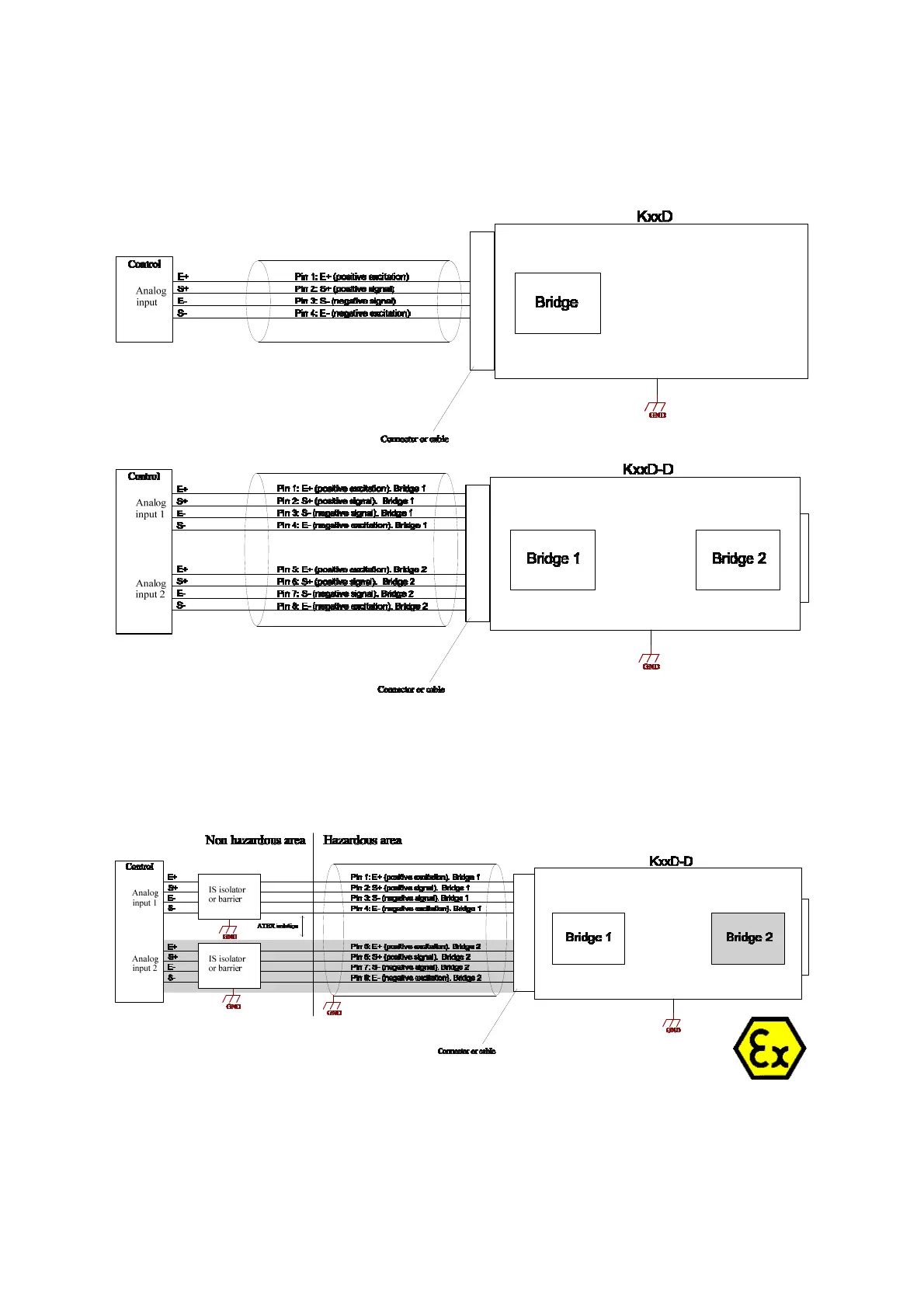

Application examples
Load cell KxxD (one strain gauge bridge) and KxxD-D (two strain gauge bridges), used
in a non-hazardous area, are shown below.
Load cell KxxD-D used in hazardous area is shown below. The cable shield is not
connected to the load cell body and shall be connected in the other end. Connection to
barrier or isolating IS unit is shown in the example below
Load cell as a safety component can be used in both hazardous and non-hazardous
areas and be connected to the measuring control in the same way.
