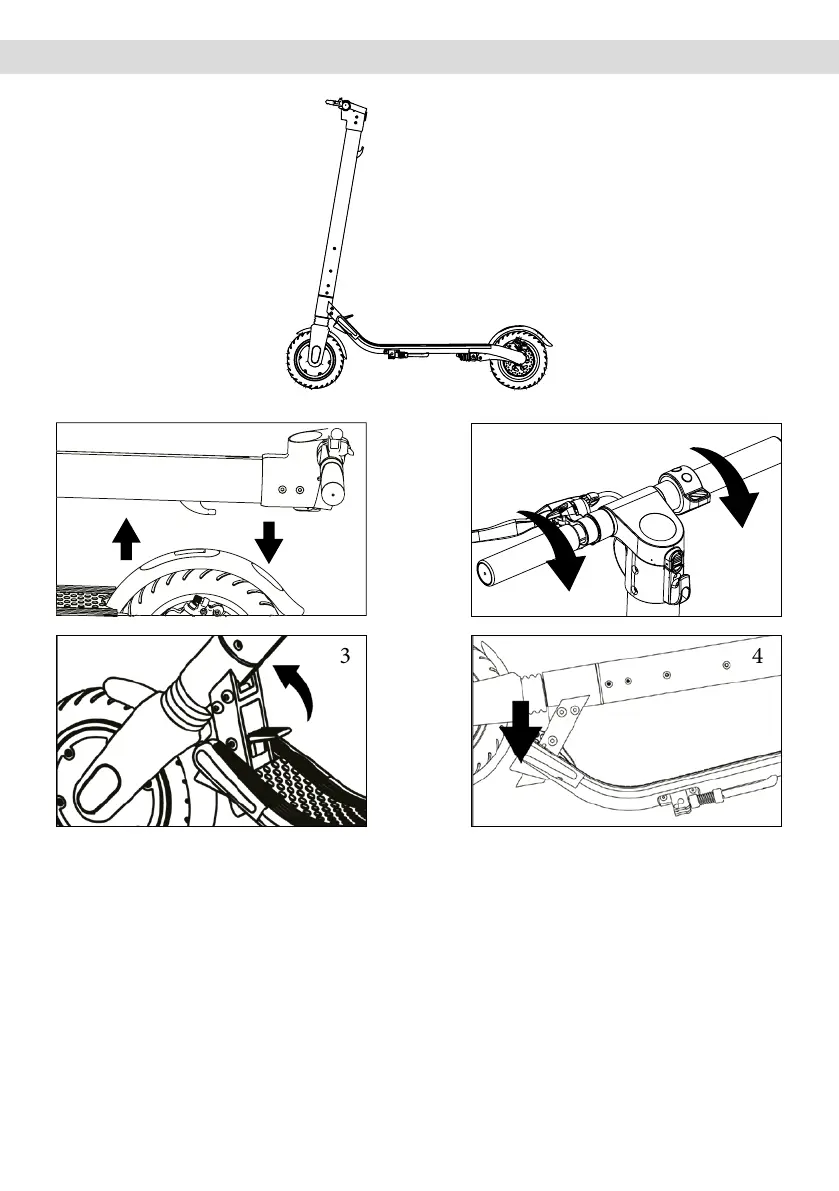

6. Assembly and set-up
1. Lift the handlebar stem while simultaneously pressing down on the rear mudguard (pic. 1).
2. Fit the grips on the handlebar and tighten them correctly, paying attention to the direction of
rotation (pic. 2).
3. To lock the handlebar rod correctly, push the handlebar forward while keeping one foot on the
footplate (pic. 3).
4. Make sure that the handlebar is locked correctly, if the handlebar tends to come back down repeat
the operation in point 3 (pic.4).
1
2
3 4
