RCVC 3000 - Red Circle Valve Controller
Installation, Operation, Maintenance Manual
Scope of Manual
This Insturction Manual provides instructions for
operation, maintenance, adjustment and troubleshooting of
VRG Controls RCVC - Red Circle Valve Controller.
Conguration Methods
1. Navigation Wheel
2. Setup Application vis USB Setup Cable
Features
• Reverse Valve Action: Can easily switch between Direct
Acting and Reverse Acting.
• Three states of Edit Fail Modes: Lock Last, Fail Open
and Fail Close
• Three modes of Lockup Mode: Lock up Open, Lock up
Close or both.
• Split Range Conguration: Can set to any Range
• Dead Band Calibration for Open and Close: can be inde-
pendently set.
• Pulse Control: can adjust the Range when the Pulse is
activated
• Pulse Zone Timers: Adjust the length and duration of
pulse
• Fixed Command: Output for Pilot Override Applications
• Enable Anti-Surge Control: Set the Range for when the
Surge will Activate.
• Various Alarm Functions dependent on Failure State.
• Zero Out Solenoid Count: Can reset for new Solenoids
both Open and Close Count.
• Remote Command and Remote Override using 24VDC.
Technical Assistance
Should you have any questions, you may
contact your local VRG Controls sales representative or
VRG Controls technical assistance at:
VRG Controls
Attn: 1199 Flex Court
Lake Zurich, IL 60047
Toll-Free: 844-FLOW-VRG (844-356-9874)
Tel: + 1 847-778-6740
e-mail: sales@vrgcontrols.com
websight: www.vrgcontrols.com
To facilitate requests for technical assistance, please have
the following information immediately available:
• Job number or serial number
• Fail states or messages
• Command signal Conguration
4ma to open or 20ma to open
• Interaction method
(navigation wheel or computer software)
Warning
Do NOT use a multimeter to check the feedback readings.
Do NOT use a multimeter to check feedback Retransmission
Signal. By connecting the negative lead to the feedback
(AI1) and the positive lead to 24 VDC, you will short out the
board. This will require a replacement board to x the issue.
Warning
The new RCVC app is not compatible with the old setup
les. To use the new RCVC you will need to load a new
setup le into the RCVC. The new setup les are compati-
ble with the old VRG Programming Application. Any RCVC
purchased after 3/1/2021 will have the new setup le already
installed in the RCVC.

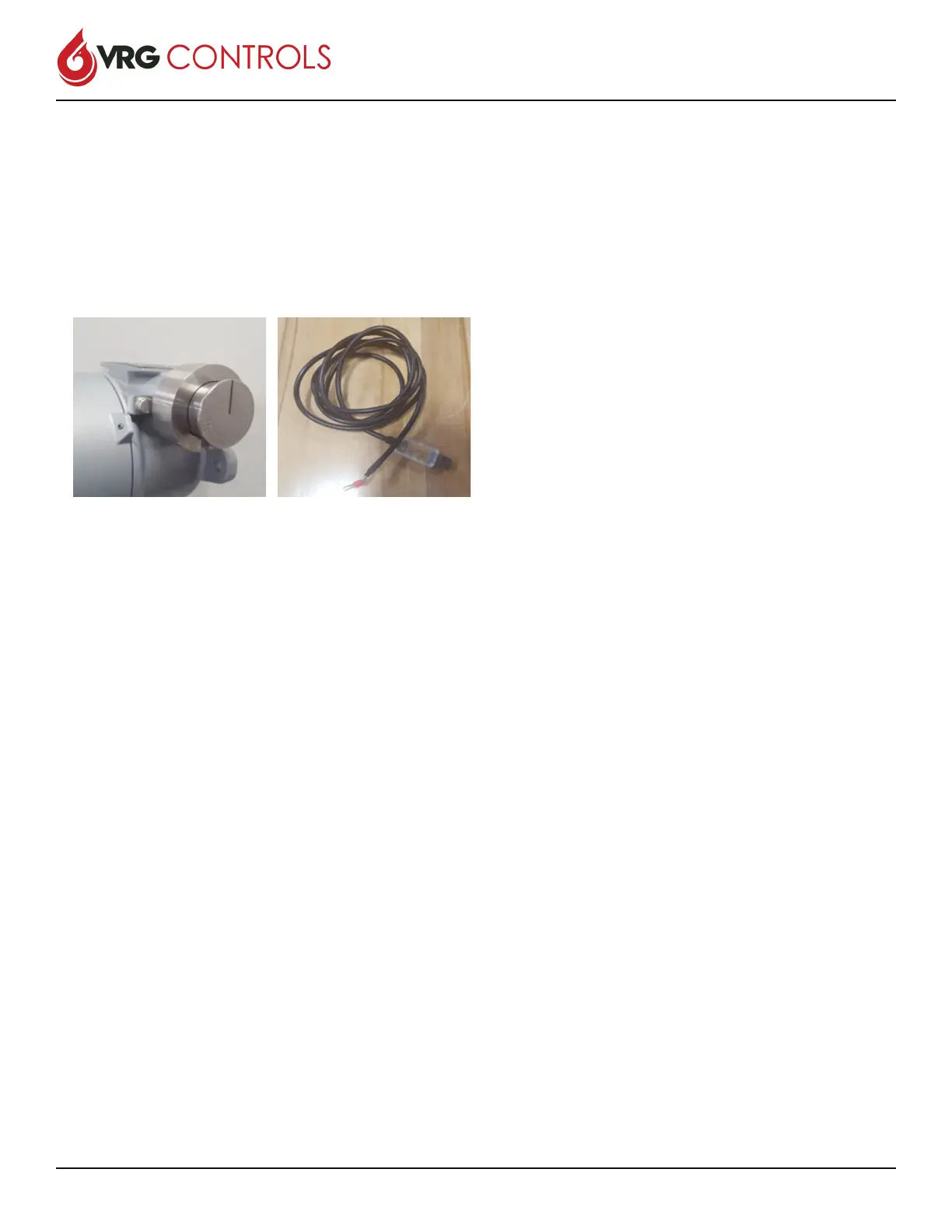

Navigation Wheel USB Setup Cable
