RCVC 3000 - Red Circle Valve Controller
Installation, Operation, Maintenance Manual
#8 Split Range Conguration
1. Apply 24 VDC Power Supply to RCVC
2. Apply Command Signal to RCVC
3. SHORT PUSH Navigation Wheel on RCVC Head
to enter Manual mode.
4. LONG PUSH Navigation Wheel on RCVC Head to
enter MENU mode.
5. Select “Application” and SHORT PUSH to enter.
6. Select “Physical I/O” and SHORT PUSH to enter.
7. Select “Analogue Inputs” and SHORT PUSH to
enter.
8. Select “Command Signal” and SHORT PUSH to
enter.
9. Select “Calibration” and SHORT PUSH to enter.
10. Select “New Calibration” and SHORT PUSH to
enter.
11. Select “Minimum” and SHORT PUSH to enter.
12. Apply desired Command Signal value (## mA
Custom Value Here) for VALVE CLOSED
position (MIN) and SHORT PUSH to enter.
13. Select “Maximum” and SHORT PUSH to enter.
14. Apply desired Command Signal value (## mA
Custom Value Here) for VALVE OPEN position
(MAX) and SHORT PUSH to enter.
15. Rotate Navigation Wheel to ESC Position to
reselect NEW CALIBRATION.
16. Rotate Navigation Wheel Toward (CCW) to
select SAVE CALIBRATION and SHORT PUSH
to enter.
17. Rotate Navigation Wheel to HOLD ESC Position
until menu stops at MANUAL on DISPLAY
HEADER.
18. Return Navigation Wheel to Neutral (Center)
Rotation Position. SHORT PUSH Navigation
Wheel on RCVC Head to exit MANUAL mode.
RCVC display Header should read AUTOMATIC.
#9 Determine RCVC Version
1. Apply 24 VDC Power Supply to RCVC
2. SHORT PUSH Navigation Wheel on RCVC Head
to enter MANUAL mode.
3. LONG PUSH Navigation Wheel on RCVC Head to
enter MENU mode.
4. Scroll to SETTINGS and SHORT PUSH to select.
5. Scroll to ABOUT and SHORT PUSH to select.
6. SOFTWARE VERSION will read
A. “V3.13.3” for RCVC 1000
B. “V4.10.2” for RCVC 2000
C. “V4.24.6” for RCVC 3000

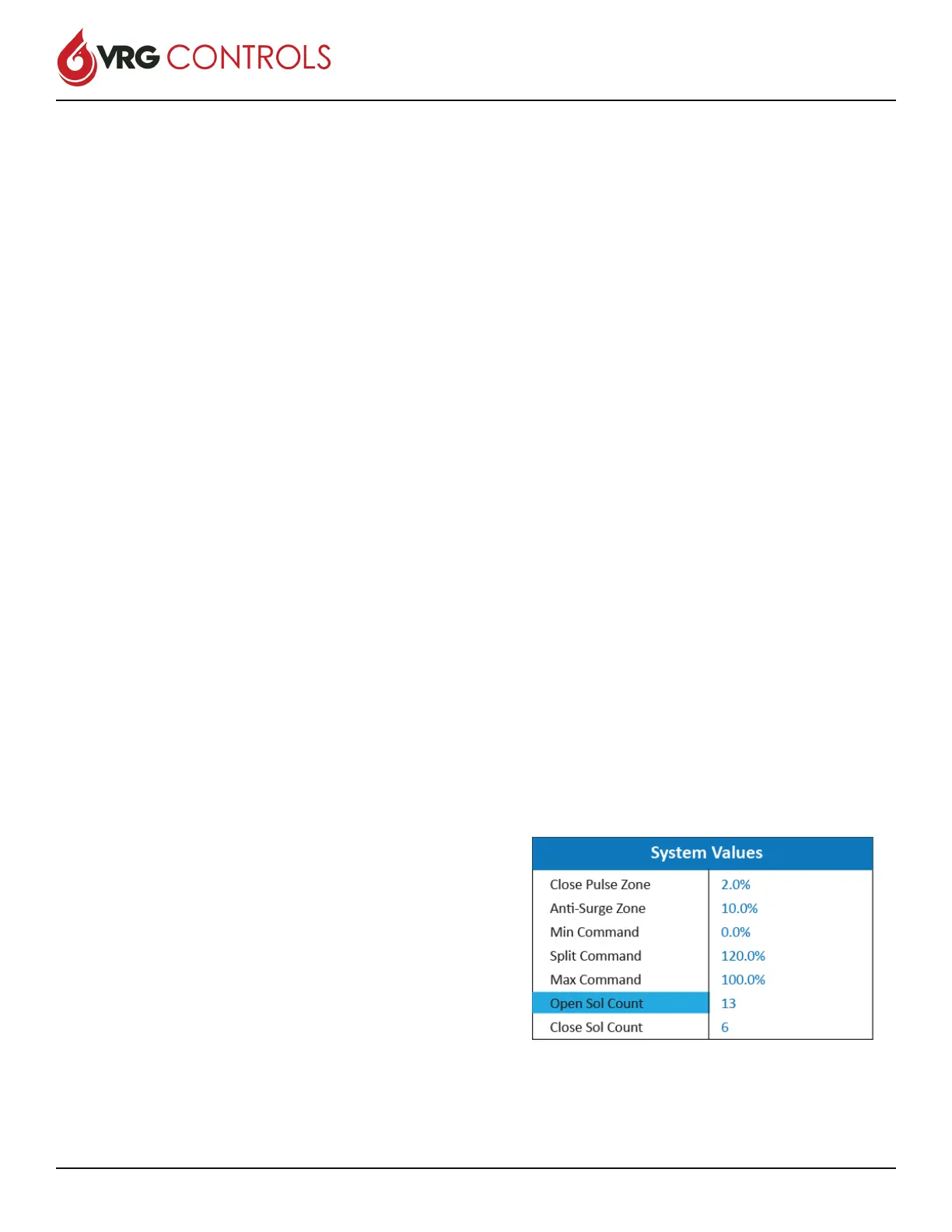

#10 Zero Out Solenoid Count
1. Apply 24 VDC Power Supply to RCVC
2. SHORT PUSH Navigation Wheel on RCVC Head
to enter MANUAL mode.
3. LONG PUSH Navigation Wheel on RCVC Head to
enter MENU mode.
4. Select “Application” and SHORT PUSH to enter.
5. Select “System Data” and SHORT PUSH to enter.
6. Scroll to “Open Sol. Count” and SHORT PUSH to
enter.
7. Select “Value” and SHORT PUSH to enter.
8. Use the Wheel to decrease the value to Zero and
SHORT PUSH to save.
9. Rotate Navigation Wheel to ESC position to exit
OPEN SOL COUNT.
10. Select “Close Sol Count” and SHORT PUSH to
enter.
11. Select “Value” and SHORT PUSH to enter.
12. Use the wheel to decrease the value to Zero and
SHORT PUSH to save.
13. Rotate Navigation Wheel to HOLD ESC Position
until menu stops at MANUAL on DISPLAY
HEADER.
14. Return Navigation Wheel to Neutral (Center)
Rotation Position. SHORT PUSH Navigation
Wheel on RCVC Head to exit MANUAL mode.
RCVC display Header should read AUTOMATIC.
