EN - 11
English

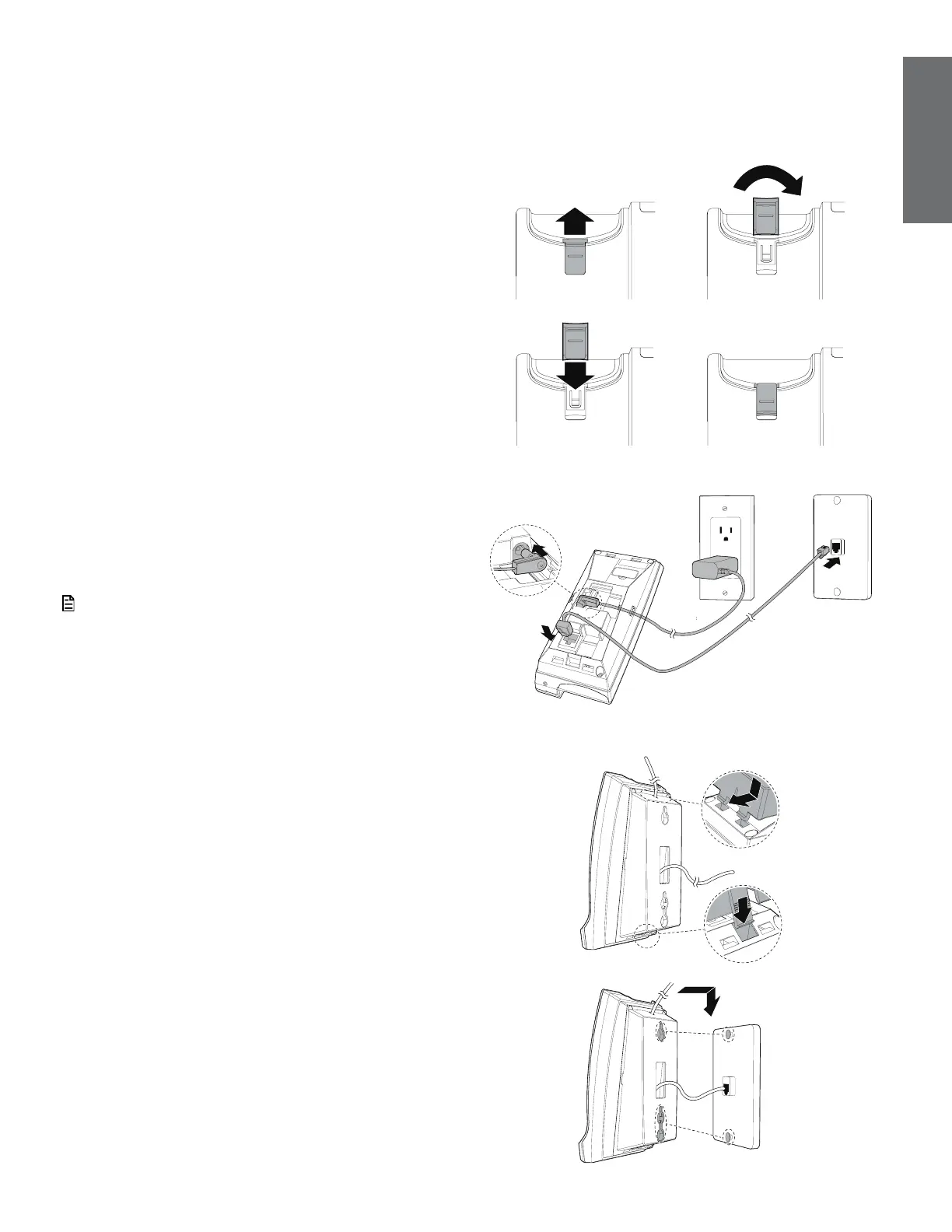

Installation option - converting
from desktop to wall mount position
To mount the telephone base on the wall
1. Unmount the base stand. Put the cordless
handset aside. On the telephone base, press
the wall mount clip upward and rotate a half
turn (180°). Slide back the clip.
• It locks into place with the protruding edge
pointing towards the upper edge of the
telephone base. This protruding edge holds
the cordless handset when the phone is
mounted on the wall.
2. Install the telephone base as shown.
Note
• The adapter is sold separately.
3. Turn the telephone base over with the
bottom side facing up. Insert the mounting
bracket into the two upper grooves and a lower
groove on the telephone base until they lock
securely. In the meantime, the telephone cord
sticks out from the rectangular hole and affix
coil handset cord by fitting it in the semi-circle
holes at the bottom of the mounting bracket as
shown below.
4. Mount the telephone base on the wall by
positioning the eyelets on the telephone base
and the mounting bracket against the mounting
studs. Then slide the telephone base down on
both mounting studs until it locks into place.
5. Replace the handset on the telephone
base cradle.
