14
Telephone base installation
The telephone can be adapted to desktop use or mount on a standard telephone wall plate.
Installation option - desktop position

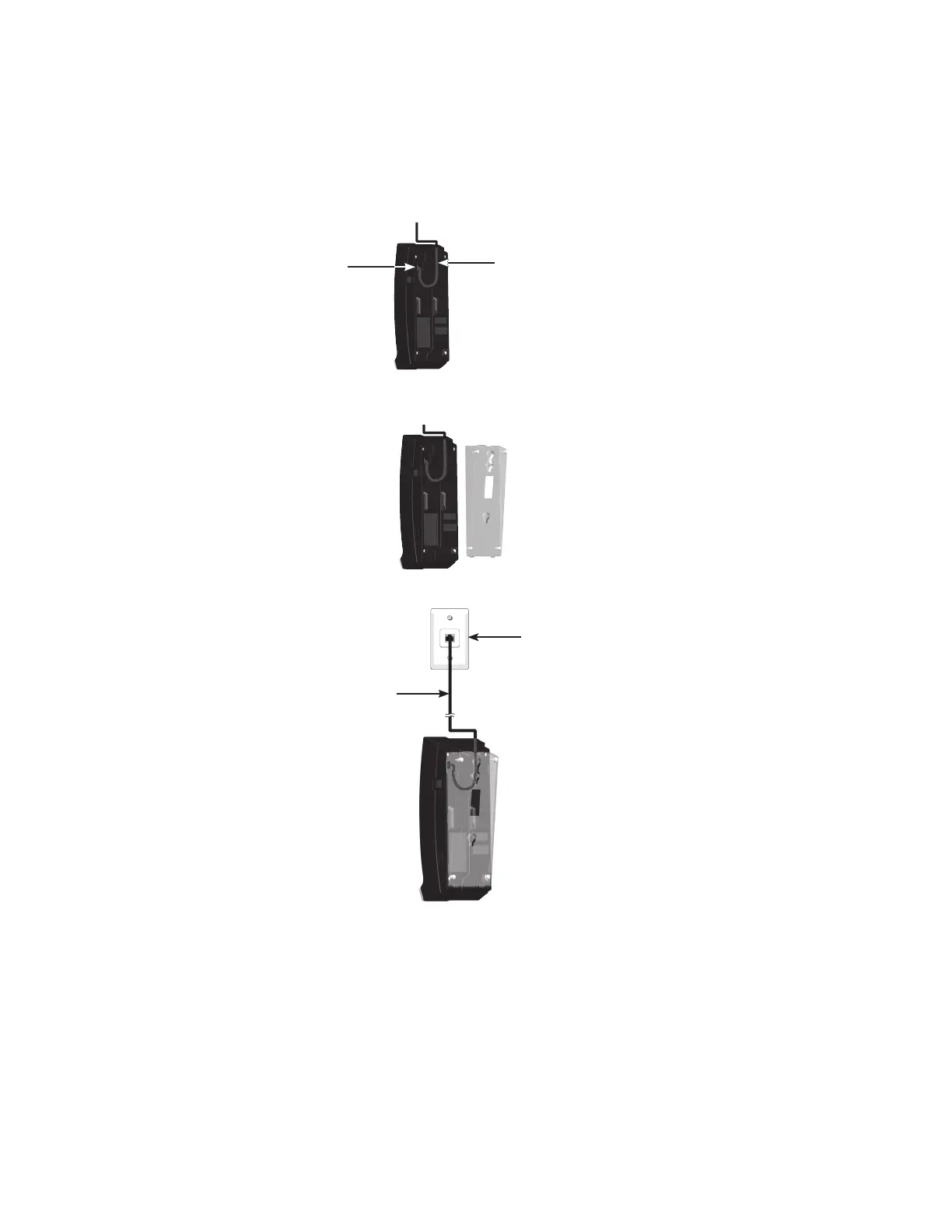

Turn the telephone base over with the bottom side facing up. Connect the telephone line cord to the telephone base and route
along the wire duct.
Position the mounting bracket as shown. Insert the two small tabs of the mounting bracket into the lower slots on the telephone
base. Then press the large tab on the mounting bracket and rmly push it into the upper groove on the telephone base.
Install the telephone base as shown below. Then connect the coiled handset cord to the telephone base.
1.
2.
3.
Installation
SIP petite 1-line/2-line - S2211/S2221
Telephone line jack
Wire duct
Once installed, the telephone begins a four-step initialization and system registration process.
For S2211: (1) The MUTE key and IN USE lights turn on and then go off. (2) The MUTE key ashes. (3) The MUTE key
stops ashing. (4) The MESSAGE WAITING LED, MUTE and IN USE lights illuminate for 500ms when initialization and
system registration are successful.
If the system registration fails, the IN USE key blinks twice every second. To reset, disconnect the Cat-5 network cable from
the network wall jack with Power over Ethernet (PoE) and connect it back again.
For S2221: (1) The MUTE key and LINE 1 turn on and then go off. (2) The MUTE key ashes. (3) The MUTE key stops
ashing. (4) The MESSAGE WAITING LED, LINE 1, LINE 2, CONF and MUTE illuminate for 500ms when initialization and
system registration are successful.
If the system registration fails, the LINE 1 key blinks twice every second. To reset, disconnect the Cat-5 network cable from
the network wall jack with Power over Ethernet (PoE) and connect it back again.
4.
•
•
Cat-5 network cable
Network wall jack with Power over Ethernet (PoE)
CAUTION:
Use only the supplied Cat-5 network cable. Cat-5 network cable is not designed for use in any other IT devices. Misuse of Cat-5 network cable on
your other IT devices shall be prohibited. To order a replacement, visit our website at www.vtechhotelphones.com or call 1-888-907-2007.
