EN - 11
Installation option - converting
from desktop to wall mount position
To mount the telephone base on the wall
1. Unmount the base stand from the telephone
base. Disconnect all cords and cables from the
telephone base. Put the cordless handset aside.
2. Turn the telephone base over with the
bottom side facing up.

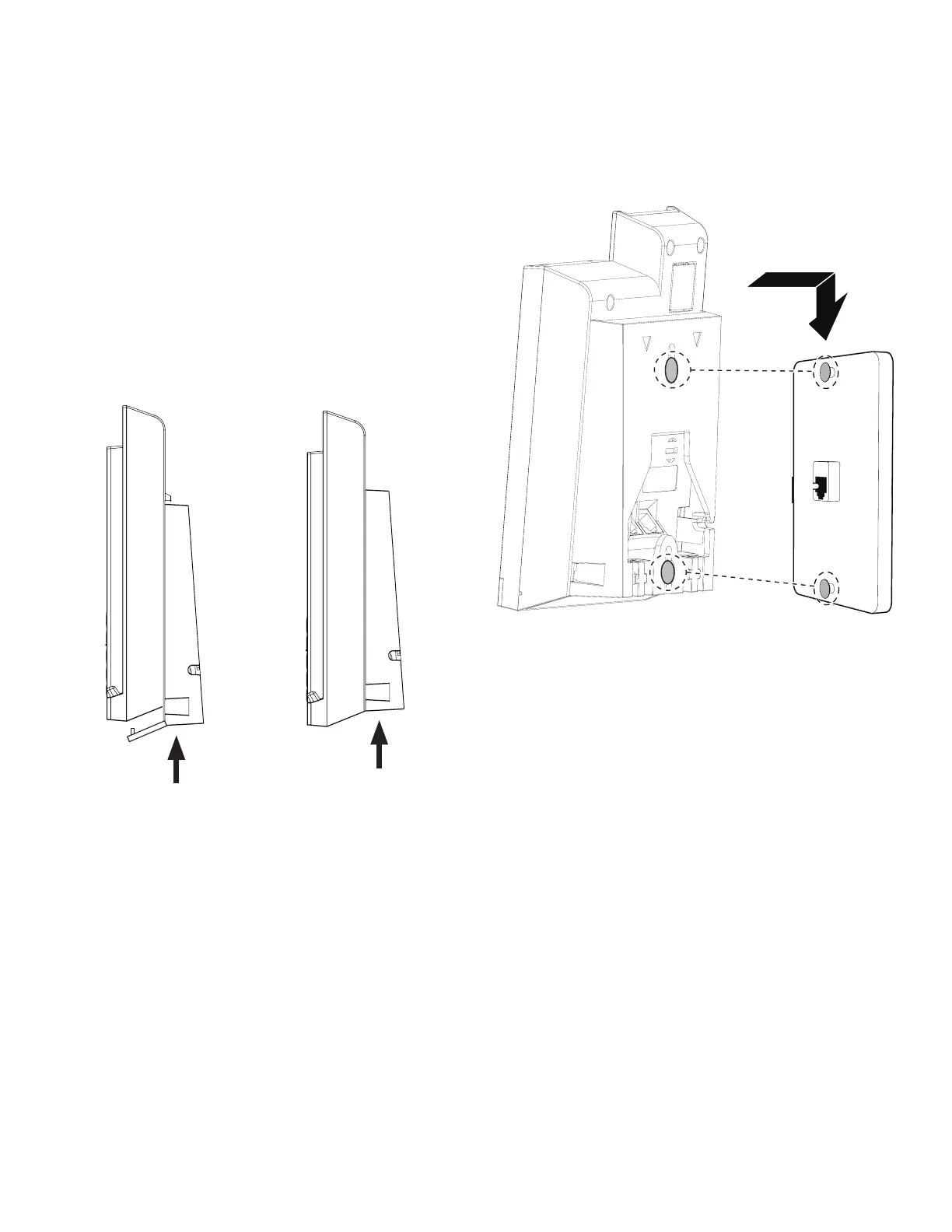

3. Align the grooves with the wall mount
bracket.
4. Slide the wall mount bracket up.
5. Connect the telephone as described in
“Telephone base installation” on page 10,
but use the short ethernet cable.
6. Route the short ethernet cable, coiled
handset cord, and optional power adapter
cable along the wire ducts accordingly. These
cables and cords stick out from the hole in the
wall mount bracket.
7. Mount the telephone base on the wall by
positioning the eyelets on the telephone base
and the mounting bracket against the mounting
studs. Then slide the telephone base down on
both mounting studs until it locks into place.
8. Place the handset on the telephone base
cradle.
To remove the wall mount bracket from
the telephone base
1. Slide the telephone base up to remove it
from the mounting studs on the wall.
2. Disconnect all cords and cables from the
telephone base.
3. Slide the wall mount bracket down and lift it
from the telephone base.
