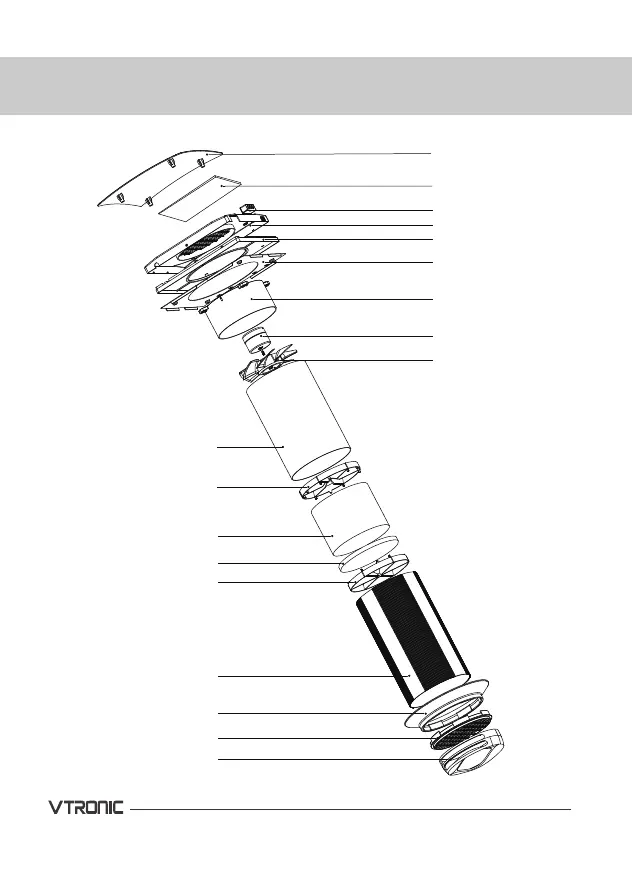

Air cap
Air Clapboard
Rubber ring
Outer Ducting
Separated frame
Pre-filter
Ceramic Heating
Exchange Core
Separated frame
Inner Ducting
Blade
DC brushless motor
Round frame
Mounting plate
Chassis
Top shell
Buttons
Panel
Noise reduction EVA
