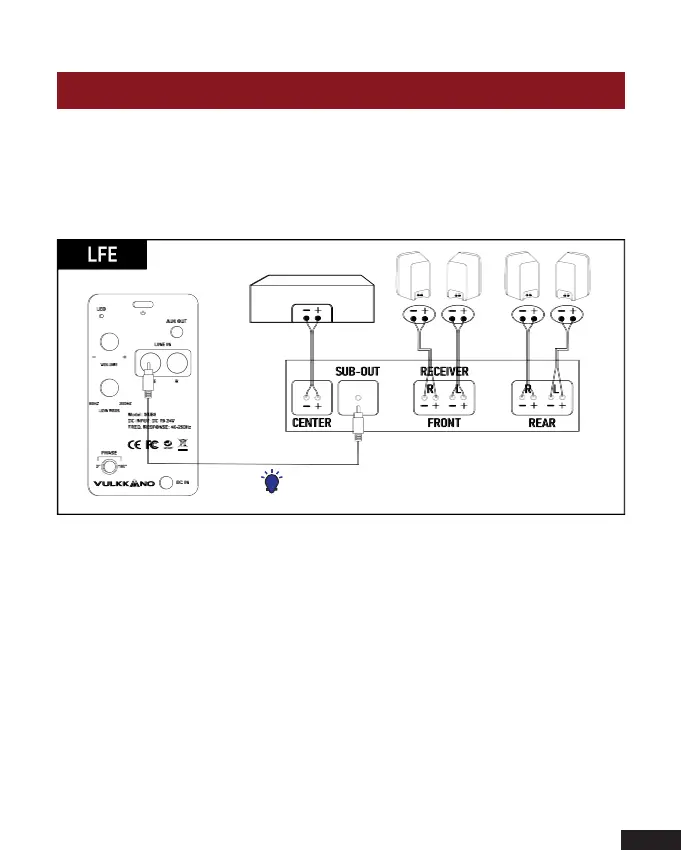

Connection Diagram
Connecting the subwoofer to the system-hookup options
Receivers that include a “Sub Out” feature-the most common hookup
method with Dolby Digital receivers.
NOTE: Connect a single subwoofer cable from the “SUB OUT” of your
receiver to the LFE input of the subwoofer. This connecting method
bypasses the subwoofer’s internal filter and relies on the filter built into
your receiver. Make no other signal connections. Do not use speaker
wire to make the connection to the subwoofer.
Back of the subwoofer
Center channel
Subwoofer cable
