1-22 OM 75Z3/8003 US – Edition 4.0 * * 7003b110.fm
Introduction
Description
Bear in mind the authorized (pay)load according to the table.
– see chapter 6.17 Lift capacity table 75Z3 on page 6-14
Location
On the headliner.
Description (option)
This label describes the functions of the hydraulic quickhitch.
– see chapter 3.57 Hydraulic quickhitch – Easy Lock (option) on page 3-95
Location
On the headliner.
Description (option) (from serial no. AH01659)
This label identifies the stop cock of the condensate trap (machine equipped with diesel
particulate filter option).
Location
In the engine compartment on the left.

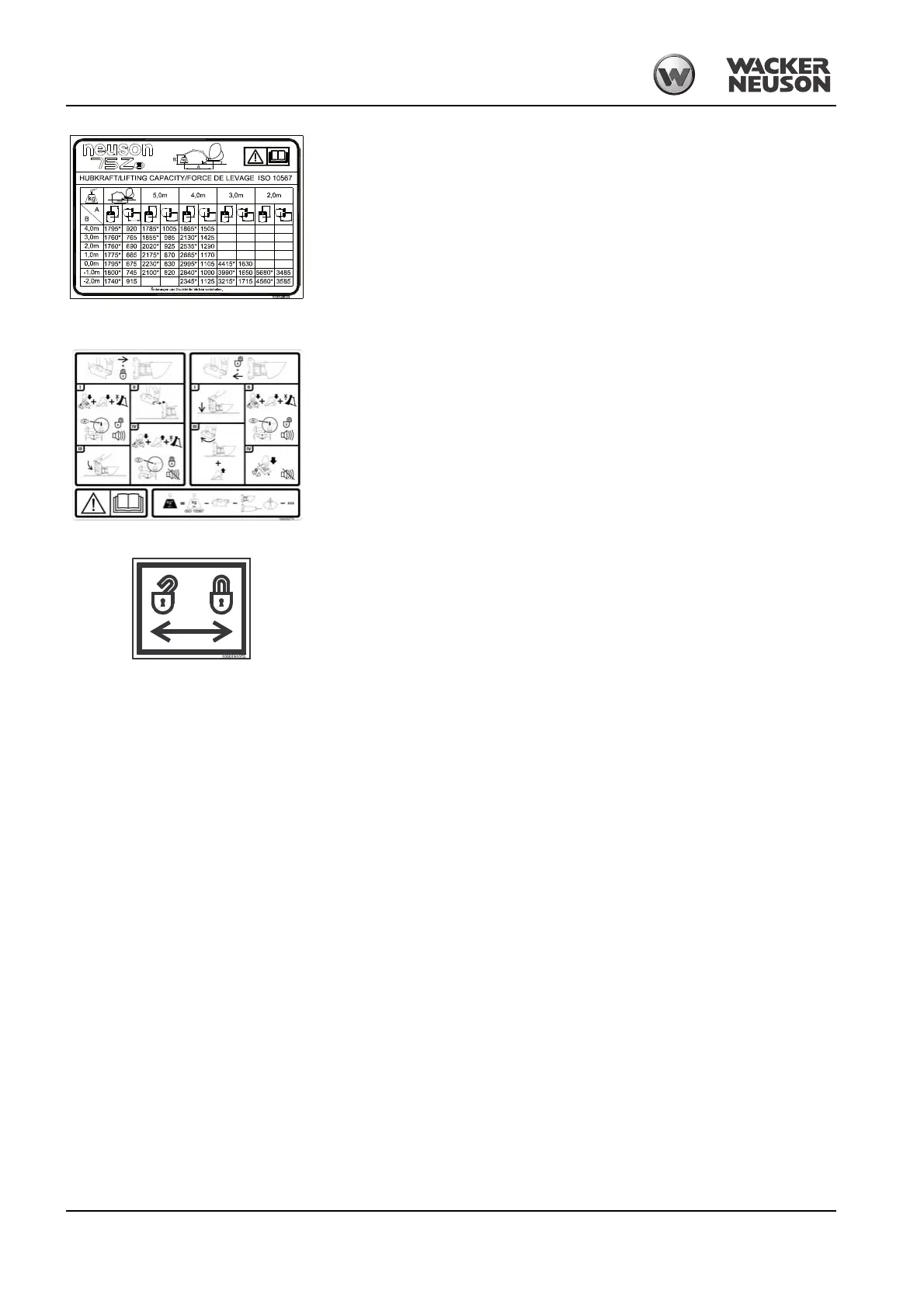

Fig. 45: Lift capacity table
Fig. 46: Hydraulic quickhitch
Fig. 47: Condensate trap stop cock
