Oil Injection (if equipped) Rammer Repair
126 wc_tx001549gb.fm
Installation
Perform the procedure below to install the oil pump.

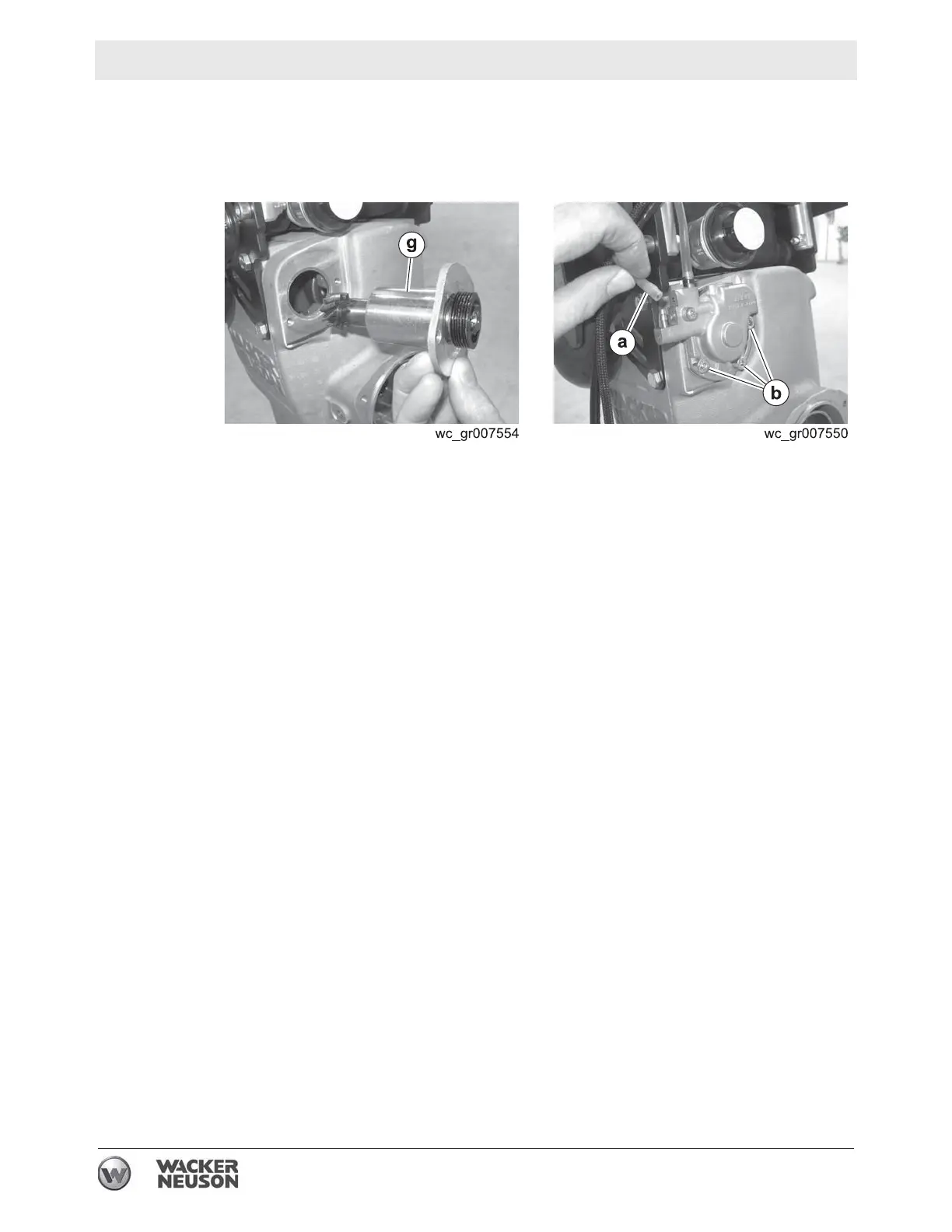

7.5.1 Slide the cartridge assembly (g) into the crankcase.
7.5.2 Install the pump to the machine using three screws
(b). Torque the
screws to 17 Nm (12 ft.lbs.).
7.5.3 Reconnect the output hose (a).
7.5.4 Reinstall the engine.
7.5.5 Reinstall the carburetor.
Result
The replacement procedure is now complete.
