4.20 Replacing the WM 80 Engine (2010 and later models)
Requirements
• Engine cool
• Carburetor removed
Removal
Perform the procedure below to remove the engine.

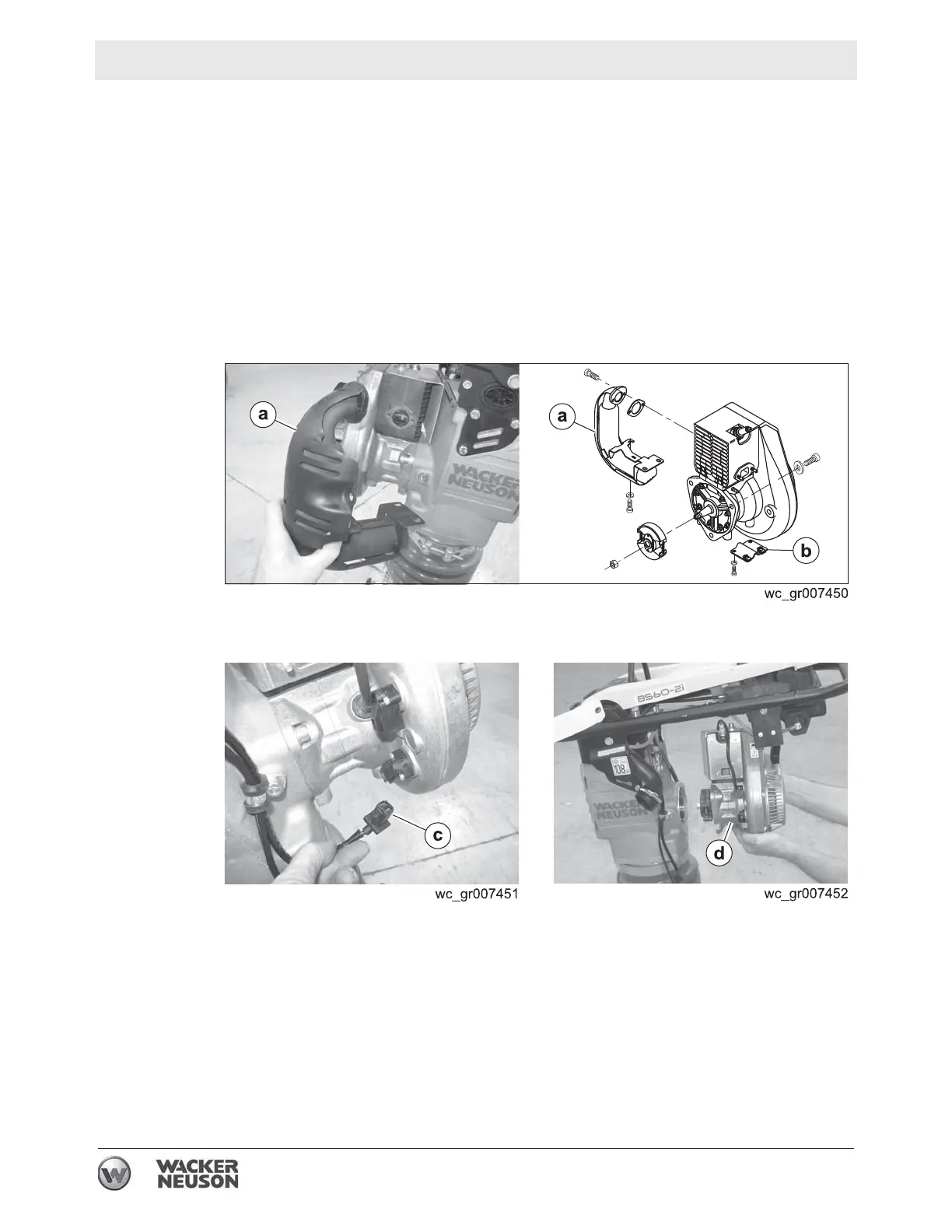

4.20.1 Remove the carburetor. See topic Removing the Carburetor.
4.20.2 Remove the muffler (a).
4.20.3 Remove the bracket
(b).
4.20.4 Disconnect the wiring to the switches (c).
4.20.5 Remove the screws that hold the engine and remove the engine
(d)
from the machine.
Result
The engine has now been removed.
