Wacker Neuson BS 50-2

Repair Engine and Upper Machine Components
wc_tx001546gb.fm 65

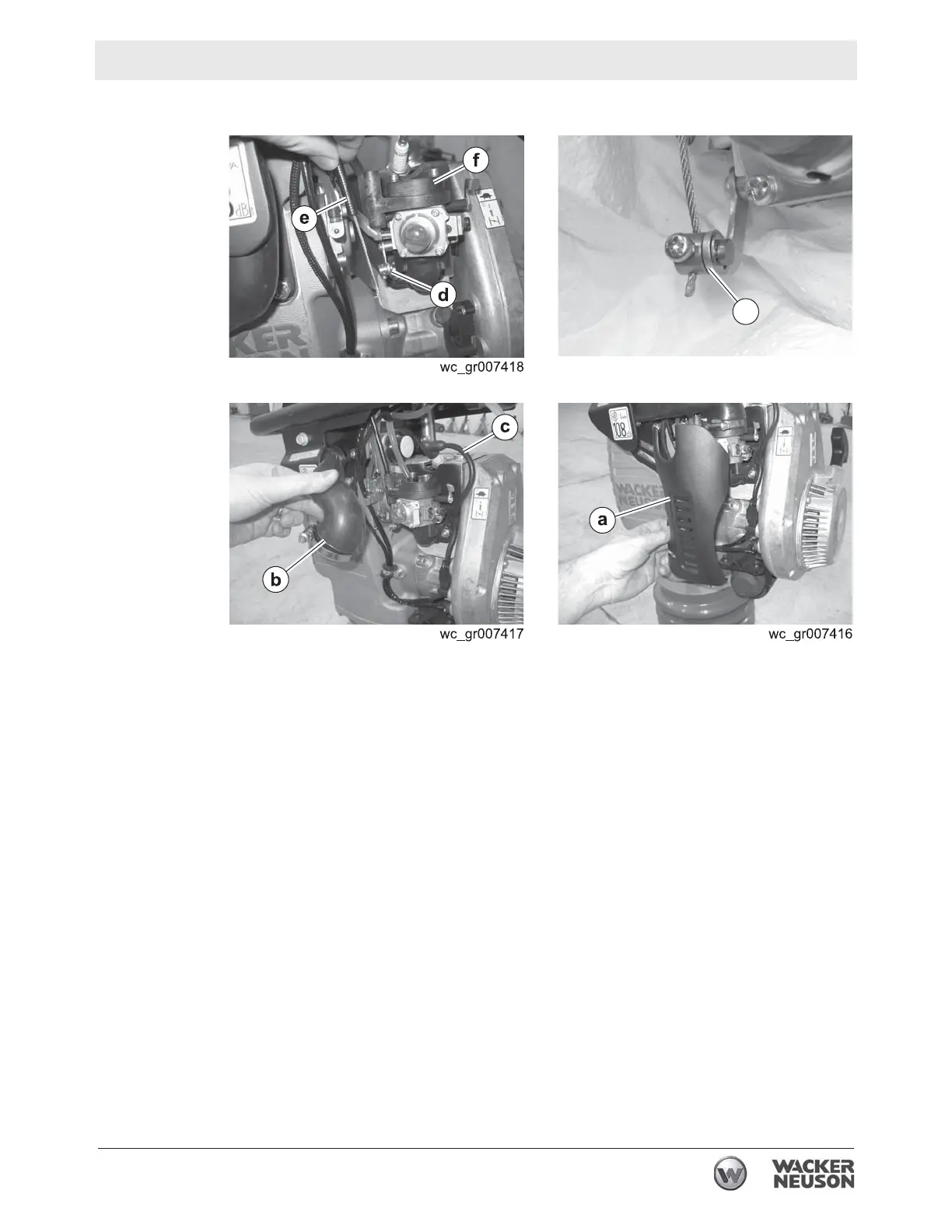

4.19.4 Slide the throttle cable (e) through the adapter (f) and reconnect it to
the clamp (d).
4.19.5 Install the air duct
(b) with the hose clamp.
4.19.6 Using Loctite® 243 on the screws, install the carburetor guard
(a).
Result
The installation procedure is now complete.
wc_gr007456
d
