Engine and Upper Machine Components Repair
44 wc_tx001546gb.fm
Installation
Perform the procedure below to install the guide handle.

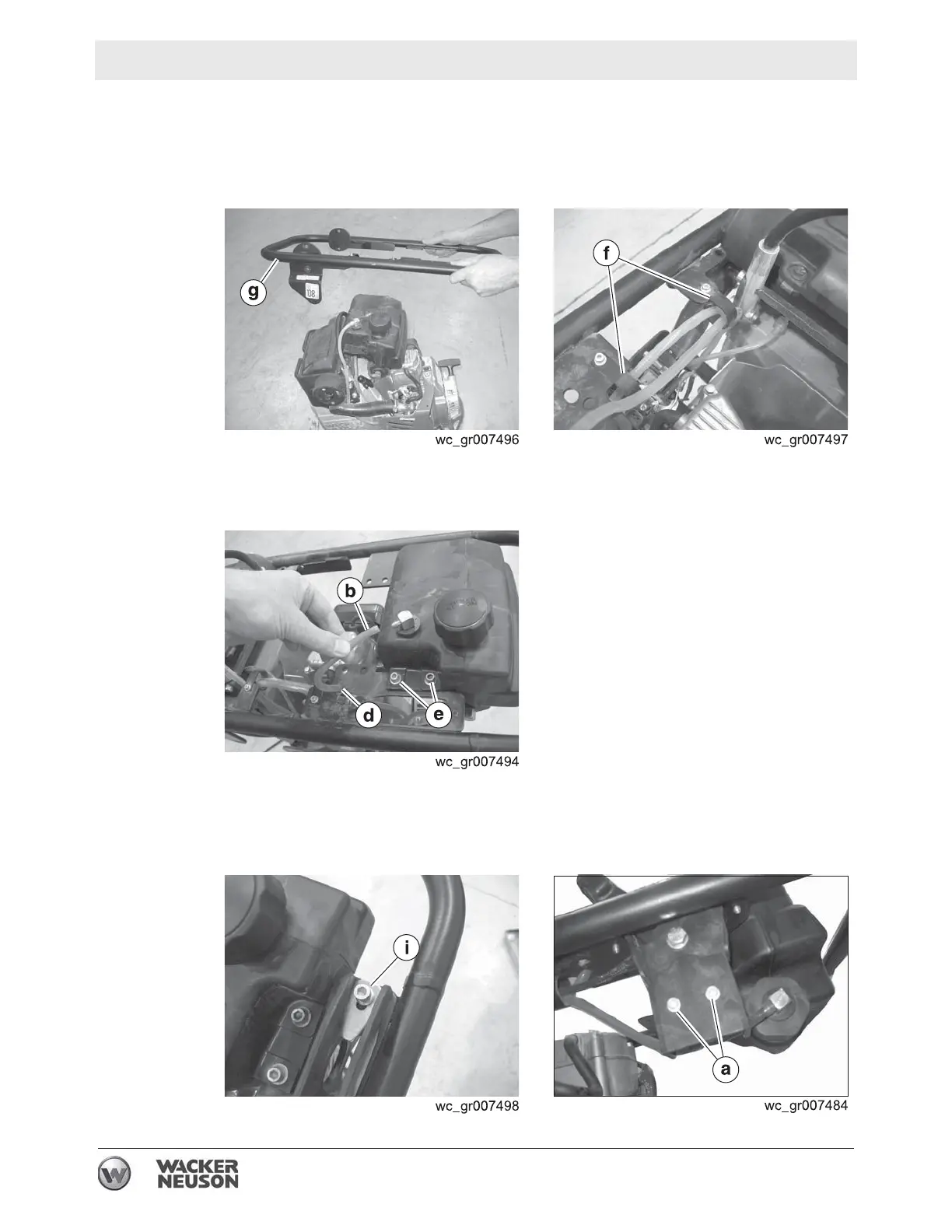

4.8.1 Install the guide handle (g) to the shock mounts. Use Loctite® 243 on
the screws and torque the screws to 24 Nm (18 ft.lbs.).
4.8.2 Feed the hoses through the clips
(f).
4.8.3 Install the fuel tank to the guide handle with screws (e). Torque the
screws to 9 Nm (6 ft.lbs.).
4.8.4 Thread the upper fuel line
(b) through the hole in the guide handle (d),
then reconnect it to the fuel tank.
4.8.5 Install the throttle stop and the throttle control bracket with screw
(i).
Torque the screw to 9 Nm (6 ft.lbs.).
