6 Transportation
4. Start the engine.
5. Lower the skip.
6. Carefully drive the machine backward onto the middle of the transport
vehicle.
7. Move the machine to transport position.
8. Apply the parking brake.
9. Stop the engine.
10.Remove the starting key and carry it with you.
11.Place the rollbar in the middle position – see chapter “ Rollbar” on
page 4-16
12.Leave the control stand. If the machine is equipped with a cabin
(option), close and lock the door, windows and all covers.

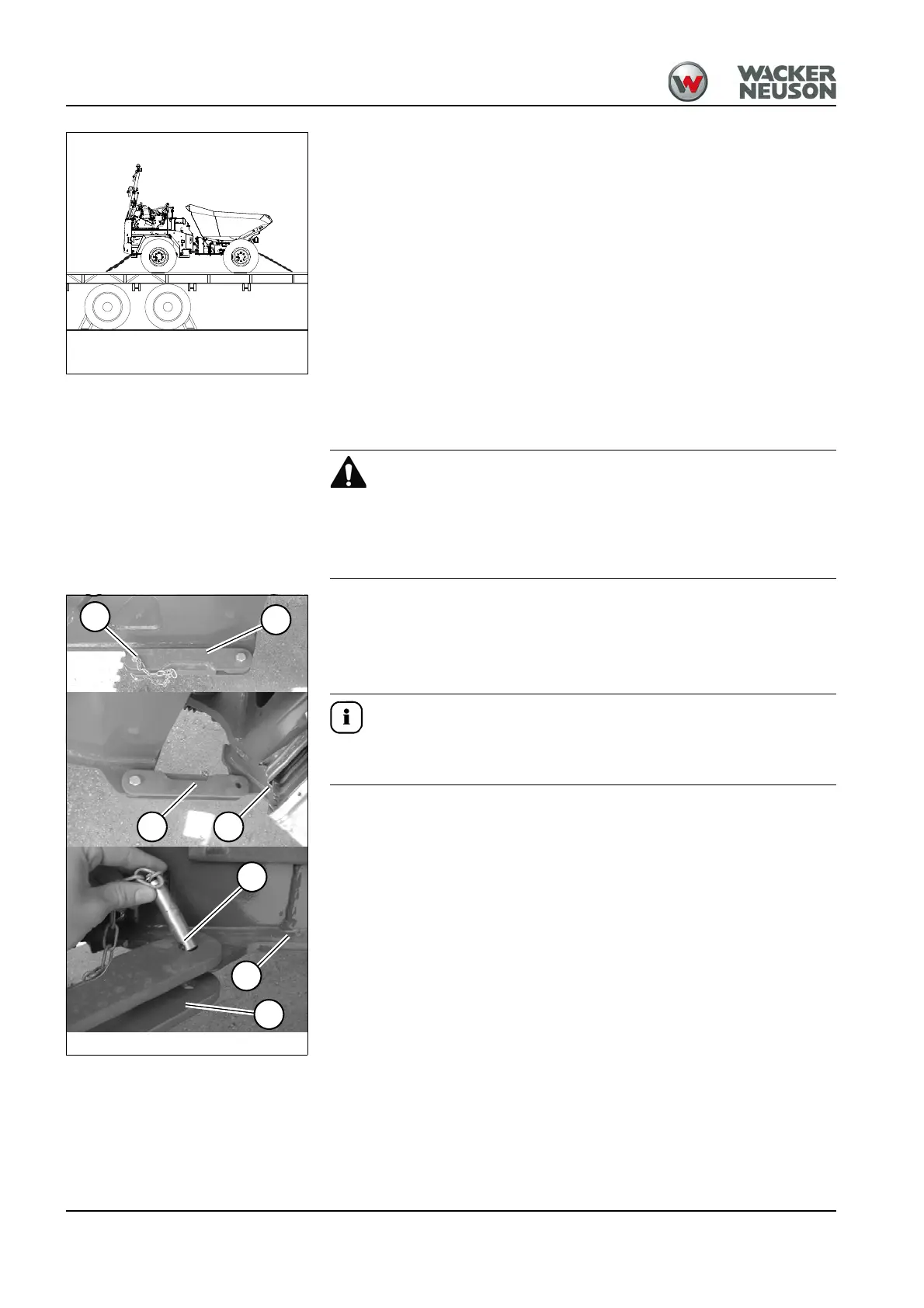

Center-pivot prop
Crushing hazard due to machine steered via the articulation!
Can cause serious injury or death.
► Install the center-pivot prop before crane-lifting the machine.
The center-pivot prop prevents the machine from being steered.
1. Remove pin B.
2. Rotate center-pivot prop A toward the drive unit C.
3. Insert pin B.
Assemble the center-pivot prop back onto loader unit before the machine
is put into operation again.
