4 Putting into operation

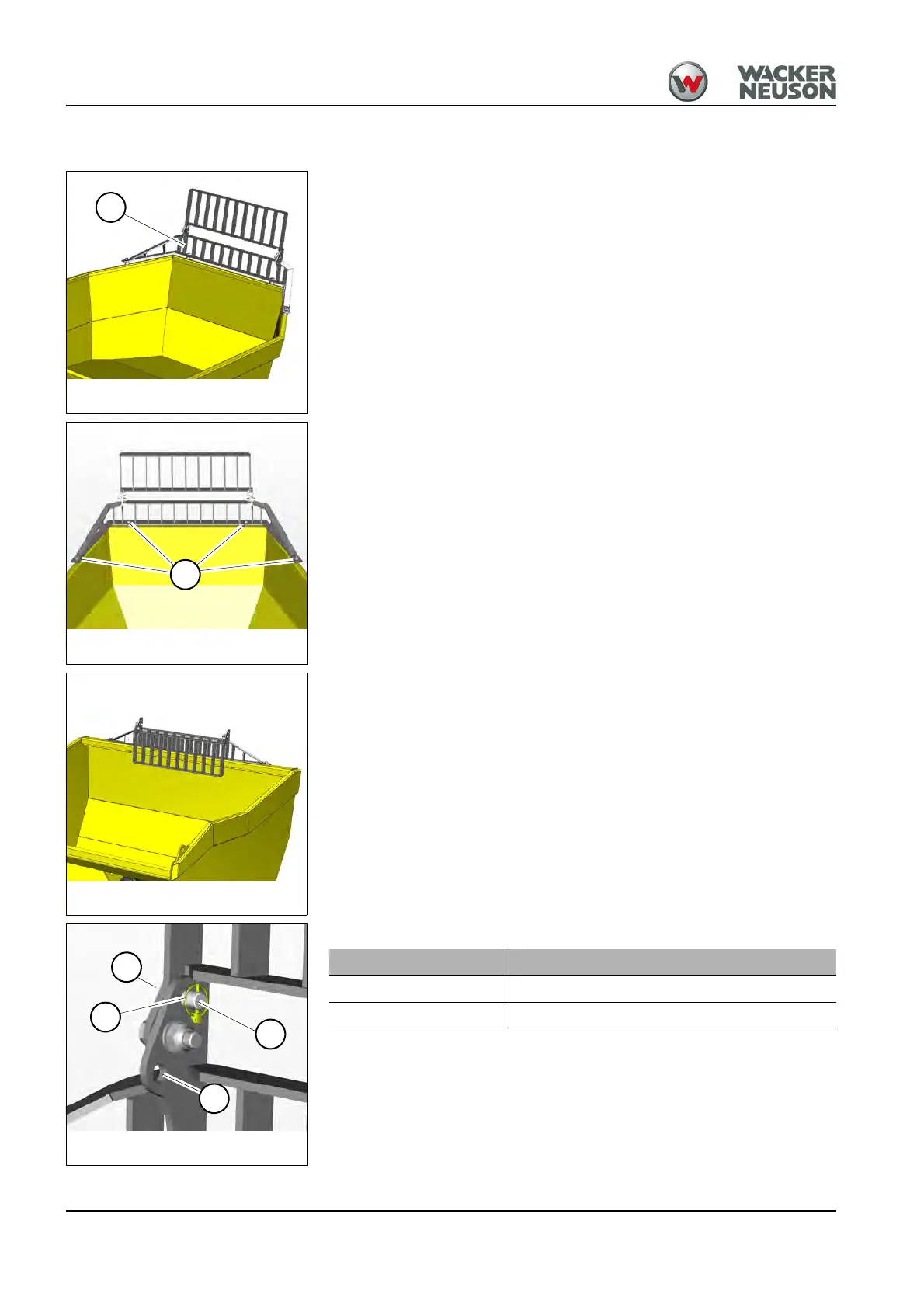

Skip grid (option)
Skip grid A protects the cabin and the operator’s compartment against
falling material or against an excavator bucket penetrating the cabin
during loading.
Assembly:
1. Stop and park the vehicle. Stop the engine – see "Preparing
lubrication" on page 7-6.
2. Put the skip grid on the assembly points with at least two persons. Use
suitable external climbing aids.
3. Tighten the four screws B to 410 Nm (302 ft.lbs).
Lowering/raising the skip grid
The skip grid must be lowered during machine travel on public roads.
Fig. 79 Symbolic representation
A
Fig. 80
B
Fig. 81
Fig. 82
C
D
2
1
Function Position
Fold-up Insert and secure the pin in hole 1
Fold-down Insert and secure the pin in hole 2
