6 Transportation

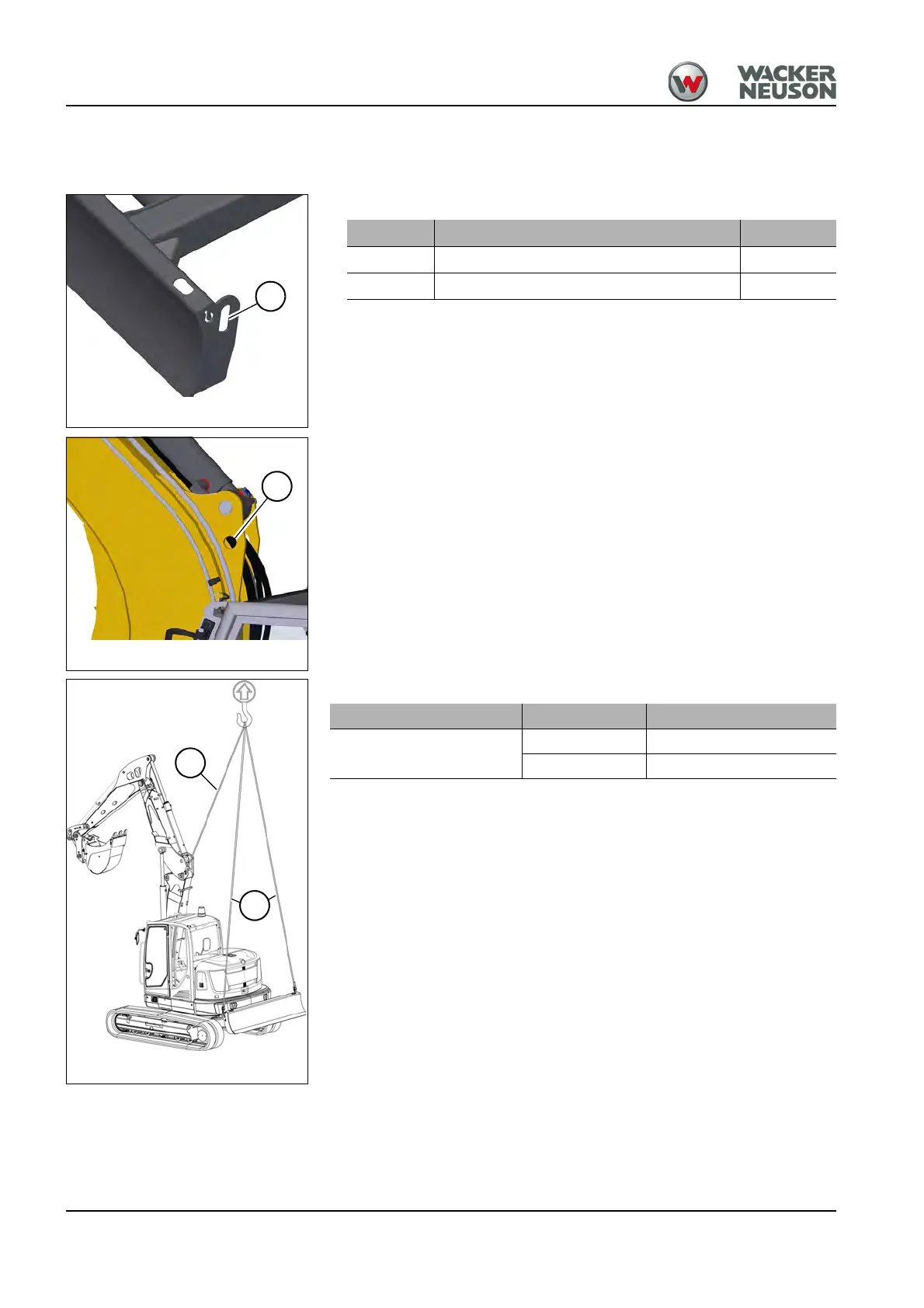

Lifting eyes
The vehicle must only be raised using the lifting eyes indicated below.
Ensure that the lifting gear has the required lengths L1 and L2
Fig. 257
A
Position Quantity
A Dozer blade left and right 2
B Boom 2
Fig. 258
B
Fig. 259 (symbolic representation)
L1
L2
Boom Length Dimensions
Boom
L1 1500 mm (59 in)
L2 3400 mm (11'-2'')
