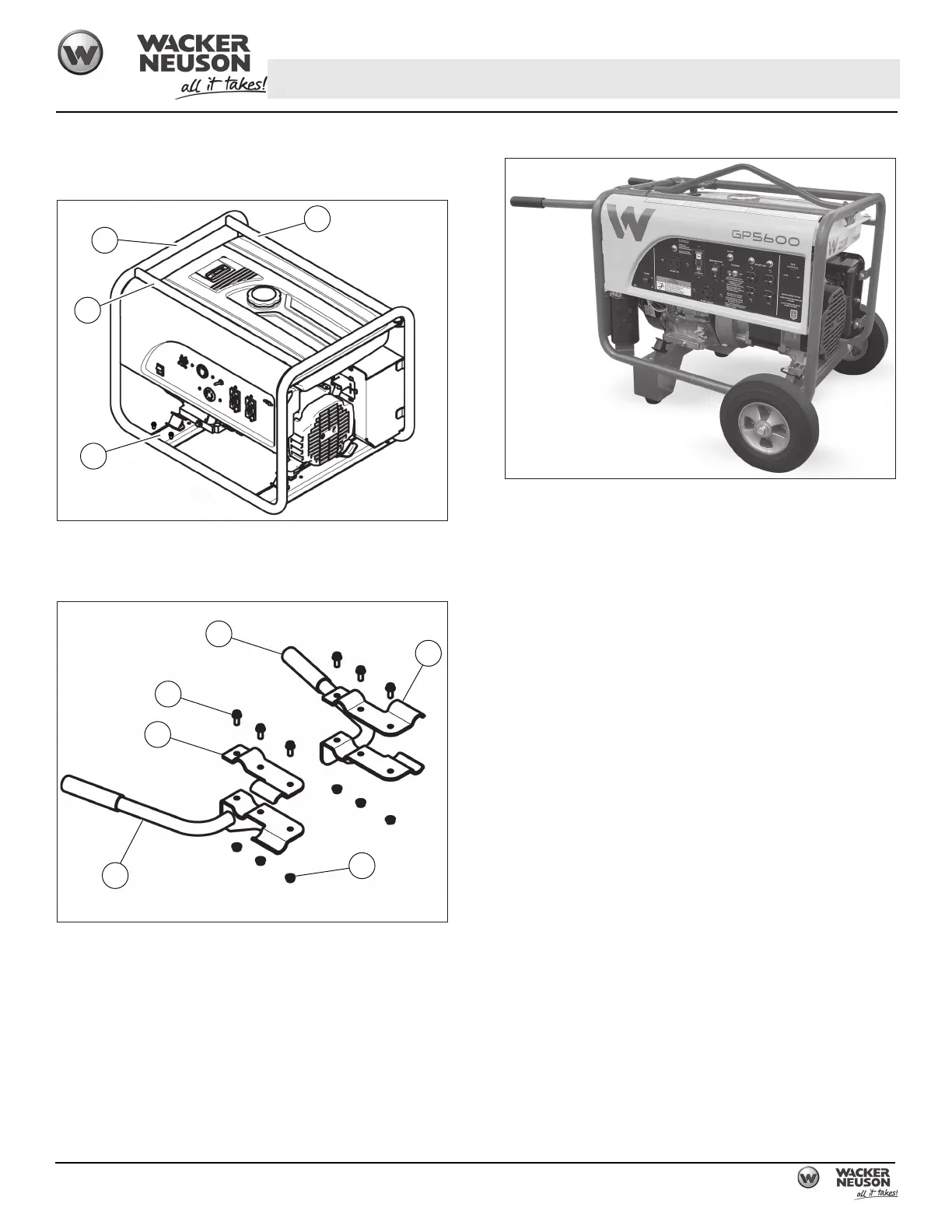

Assembly Instructions—Wheel Kit
Continued from the previous page.
wc_tx004653en.fm 5
8. Align the right handlebar (p) with the top-left
frame (q) and the top-front crossbar (r).
9. Attach the right support bracket (s) to the right
handlebar with three M8 x 20 bolts (t) and three
M8 nuts (g).
10. Align the left handlebar (u) with the top-left frame and
the top-rear crossbar (v).
11. Attach the left support bracket (w) to the left
handlebar with three M8 x 20 bolts and three
M8 nuts.
•
wc_gr015073
o
q
r
v
wc_gr015071
p
s
t
u
w
g
wc_gr015092
