Lifting and Transporting LTV
3 Lifting and Transporting
3.1 Lifting the Machine
Requirements
■ Properly rated lifting equipment (crane or hoist). See Chapter Technical Data.
■ Machine stopped.
■ All doors and access covers closed and secured.
■ Tower is completely lowered.
■ The winch (e) and lights are facing foward.
■ Outriggers have been returned to their travel position.
■ Outrigger bars and jacks are locked in place.
■ Outrigger jacks (c) are completely cranked in and rotated 180°.
Procedure
Perform the procedure below to lift the machine.

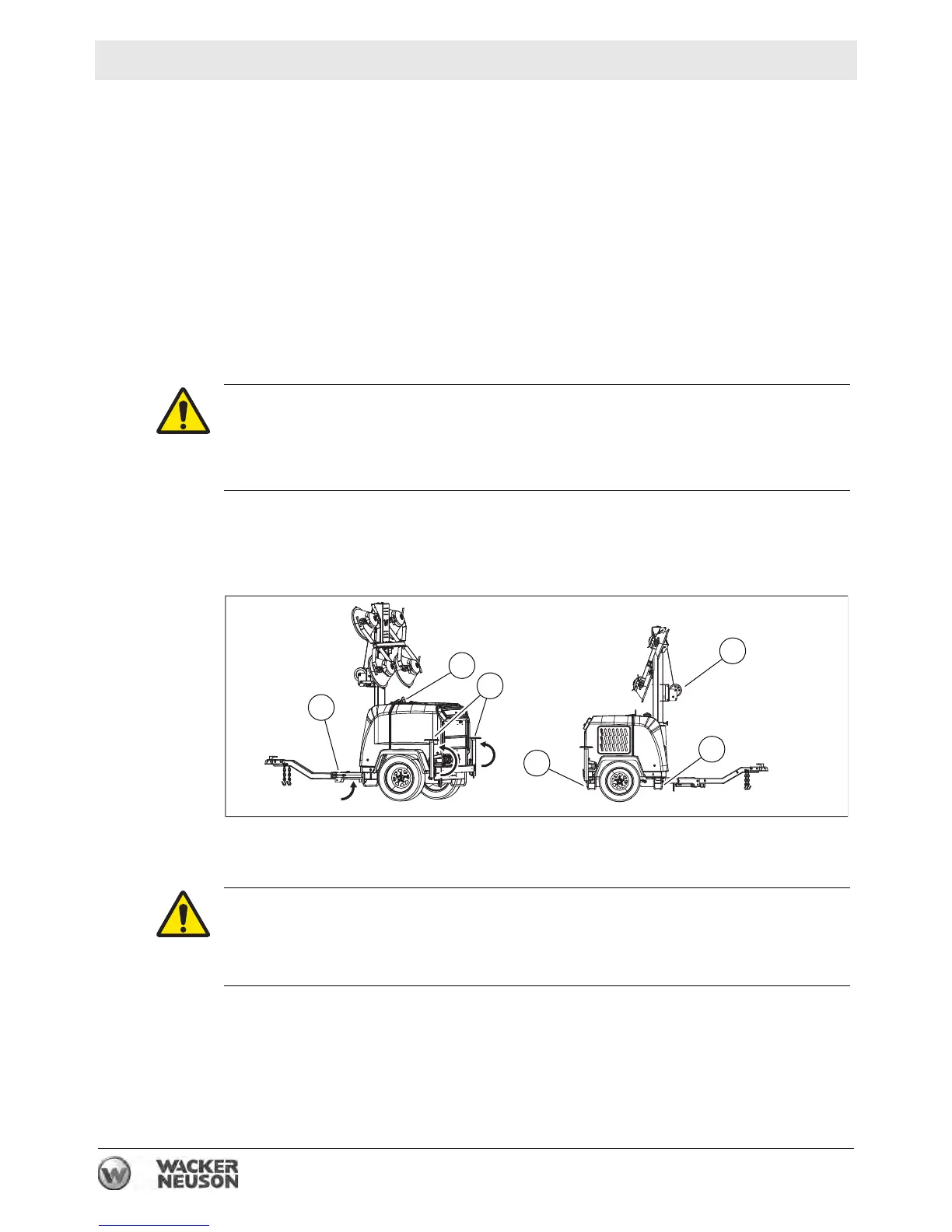

1. Attach the lifting equipment to the lifting eye (b) on the machine using hooks,
shackles, and chains or insert forks into the fork pockets (d).
2. Lift the machine a small distance.
3. Check for stability. If necessary, lower the machine, reposition the lifting device,
and lift the machine a small distance again.
4. Continue lifting the machine as necessary.
WARNING
Crushing hazard. You may be crushed if the lifting devices fail.
► Never stand under, or get onto, the machine while it is being lifted or moved.
► Use only the designated lifting points to lift the machine.
WARNING
Crushing hazard. An unstable machine may cause the lifting devices to fail. You
may be crushed if the lifting devices fail.
► Check for stability before continuing.
