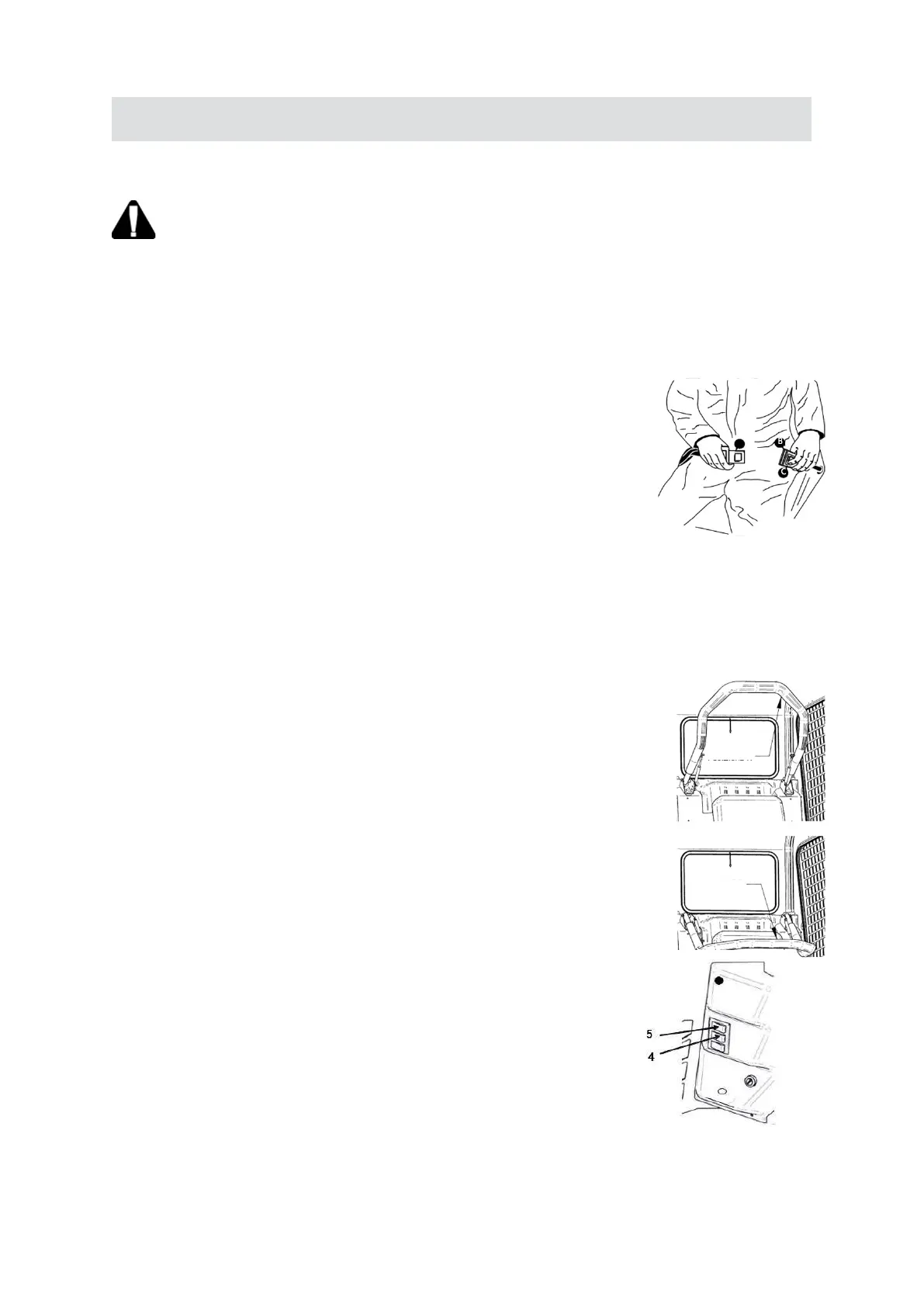

03 – OPERATOR CONTROLS
DRIVER’S SEAT
The driver’s seat must not be adjusted while the vehicle is moving.
Danger of accidents!
Always fasten the seatbelts.
The driver’s seat is important for good health. Therefore it must be maintained integral.
The driver’s seat can be adjusted longitudinally using the special lever positioned low on the right
hand side.
SAFETY BELTS
FASTENING:
Sit properly in the driver’s seat, adjust the belt length, check thatit is not
twisted, then insert the clip A into the housing B until locked.
UNFASTENING:
Press the button C and remove the belt from the fixed part placing it to
the right of the driver.
SAFETY BAR
Every machine is equipped with a safety bar that together with the safety belts and cabin in
compliance with ROPS and FOPS makes up the operator’s “safety girdle”.
The machine must always be driven with safety bar lowered and safety belts fastened.
FUNCTIONS OF THE SAFETY BAR
A- SAFETY BARRAISED:
-
Start-up of the diesel engine
-
The servo-controls are deactivated
-
The lifting arms are blocked
B - SAFETY BARLOWERED:
- The diesel engine does not start-up
-
The servo-controls are activated
-
The arm control is deactivated.
For activation of the arm control
(ascent/descent) press the button (Fig.1 - ref.4)
ATTENTION
If the safety bar rises the hydraulic servo-controlsare
deactivated and the lifting arm blocked.
A
POSITIONA
POSITIONB
