LIMITSFORQUICKCOUPLING UTILISATIONANDRELATEDEQUIPMENT,BUCKET INCLUDED.
With the lifting arms in maximum collection position, and in contact with the frame, it is
strictly prohibited to rotate the bucket completely towards the ground as the pivot of
the quick coupling of the bucket and the bucket itself, when the rotation of the track rollers

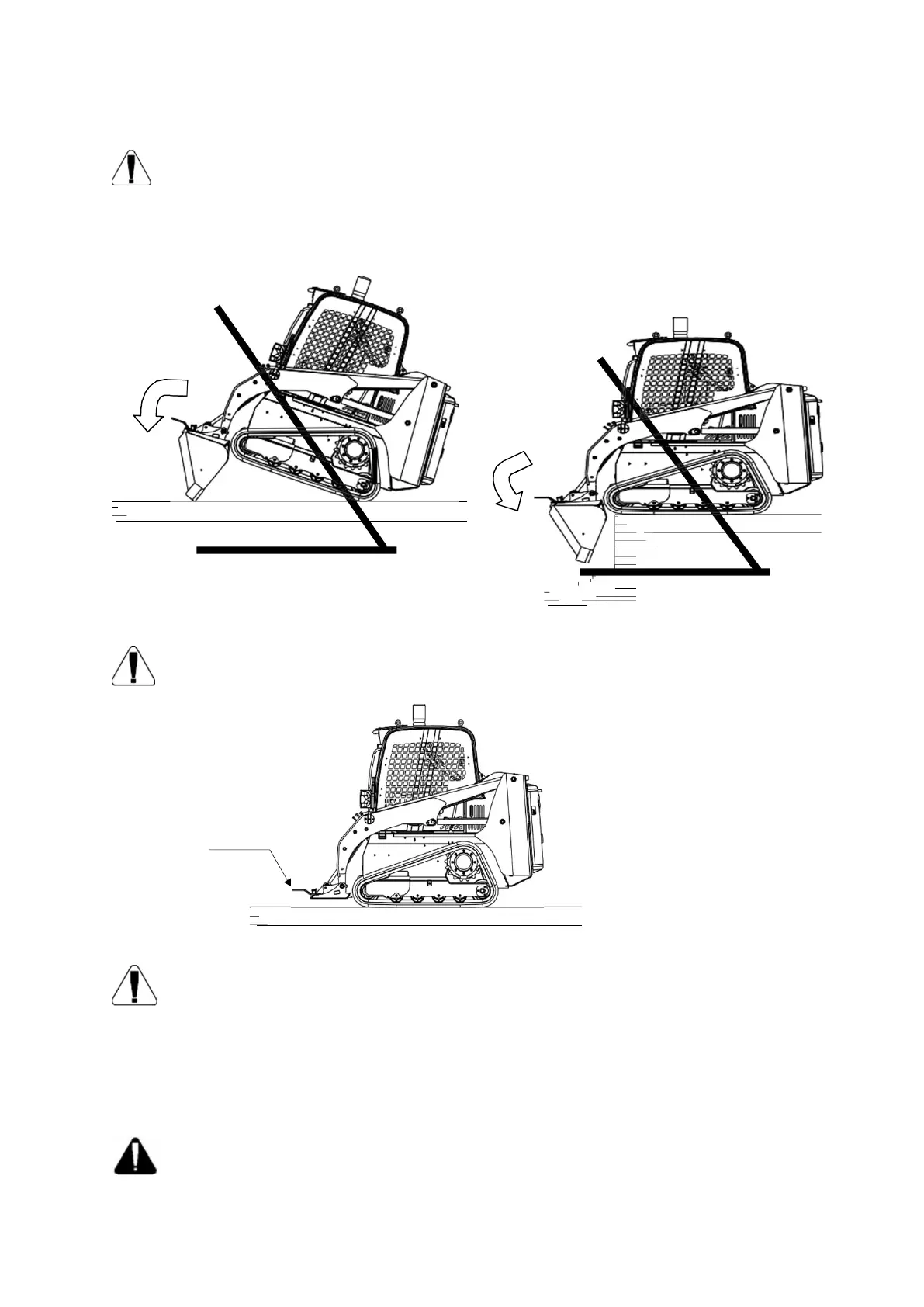

is tampered with, can cause damage to same. Here below certain positions that should
never be assumed are demonstrated with diagrams.
The maximum permitted rotation (to be executed with great care) is to that point where
the quick coupling is level, parallel to the ground.
In this position correct utilisation of the quick coupling is ensured.
The lever of the quick coupling, without any other equipment, bucket included, must always
be in the completely open position (pivot retracted).
Inobservance of the aforementioned guidelines could result in premature damage to the
track rollers.
TOWING THE MACHINE
THIS MACHINE MAY NOT BE TOWED
For removal purposes, in case of EMERGENCY, only utilise lifting apparatus.
