01 – PRESENTATION OF THE MACHINE
The loading shovel has been designed and built for loading and unloading earth, gravel, sand, debris
and other loose material and is however suitable to operate in compliance with the features and
performance indicated in this manual.
It is a machine with Diesel internal combustion motorisation with hydrostatic transmission, joy-stick
type servo-controls for traversing and manoeuvre of the arms and the bucket.
Movement is obtained using four rubber tracks with suitable tread to operate inside without dam-
aging the floor.
The machine is equipped with an open or closed driver’s cabin with heating plant and an incorporated
protective structure against tipping ROPS and against falling objects FOPS – 1
st
level.
FOPS 2
nd
level protection can be supplied on request for heavy duty and/or particular use; bolt in
replacement of the 4 eye-bolts.
MACHINE IDENTIFICATION
The machine is fitted with a special plate carrying the
identification data of the machine, riveted to the left
front side of the frame.
For any queries always quote the type and serial
number stated on the plate.
For further explanations, please consult the modes
on the Spare Parts Manual attached to the machine.
Other accessories which can be installed in the machine
will be provided with their nameplate, which can be seen
from the external part of the accessory.
For further information consult the documentation related
to the specific element.

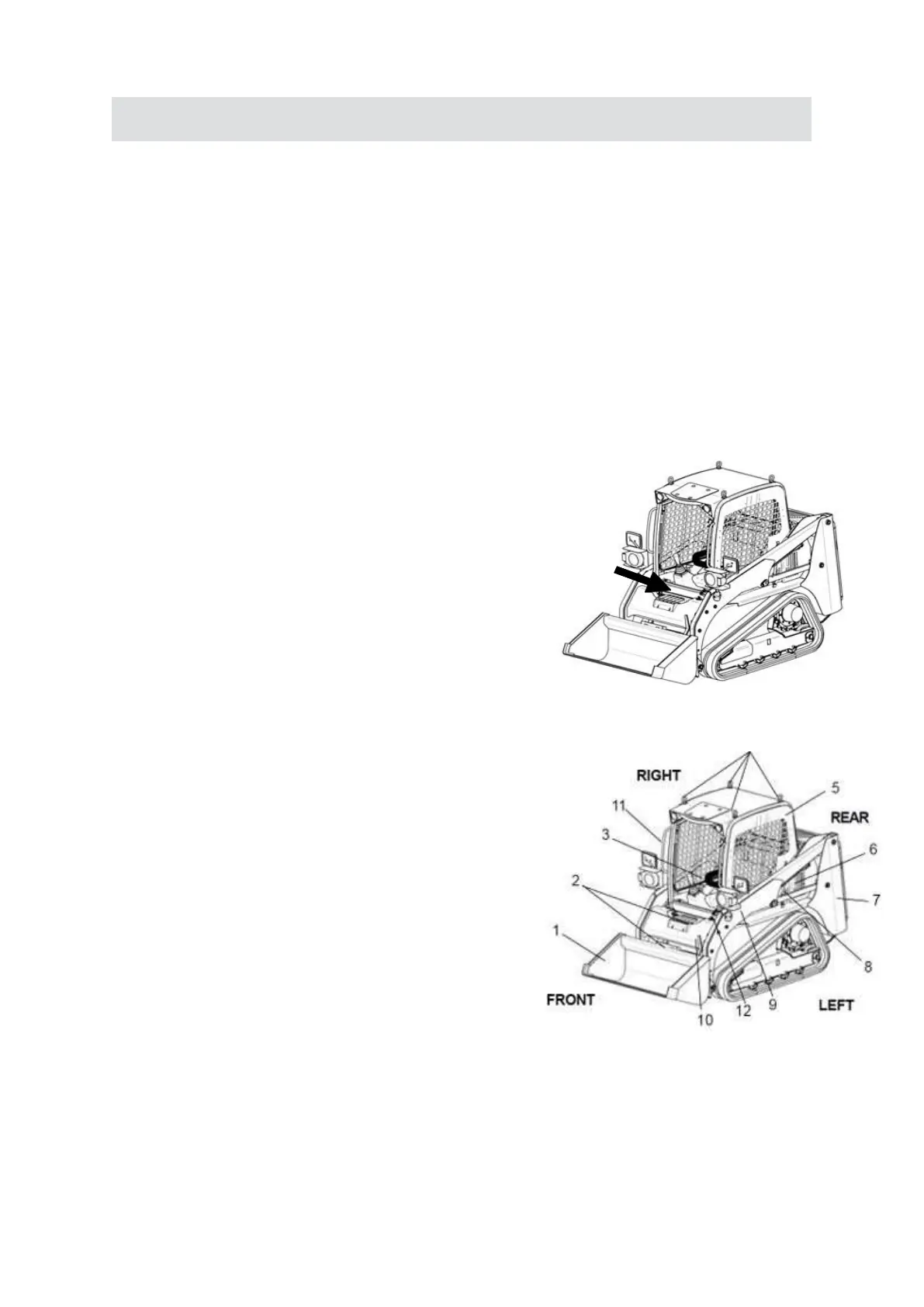

MAIN PARTS OF THE MACHINE
1. Loading bucket
2. Non-slip access steps
3. Safety bar
4. Lifting eye-bolts
5. Cabin ROPS-FOPS
6. Hydraulic oil tank
7. Cowling
8. Diesel tank (RIGHT and LEFT)
9. Lever arm
10. Bucket release and various equipment
11. Handle for ascent and descent
12. Auxiliary power take off (P.T.O)
